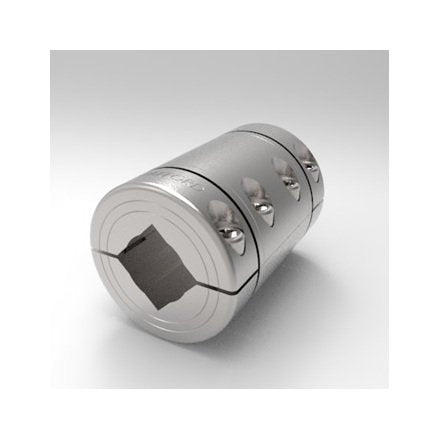

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-e91cc6
Precision Sleeve Couplings for precise shaft alignment and convenient adjustment. High clamping power with non-marring design. Available in stainless steel, steel, and aluminum.
Regular price
$163.17
Regular price
Sale price
$163.17
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$163.17
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$163.17
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings feature a solid center section for a close tolerance fit on ground shafting. With axial runout less than .001" TIR, these couplings ensure precise shaft alignment. The two-piece design allows convenient assembly and adjustment, while the smooth bore protects shafts from damage. Made of high-quality stainless steel, these couplings are precision machined, non-marring, and offer high clamping power. Stocked in steel, stainless steel, and aluminum options.
Product Specifications
Dimensional Attributes Bore Size A
7/8 in
Dimensional Attributes Bore Size B
7/8 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Length
3.375 in
Specifications Alloy
303
Specifications Approximate Weight
2.76 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
163.17 USD
Specifications Material
Stainless Steel
Specifications Part Number
15S014014PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040450
