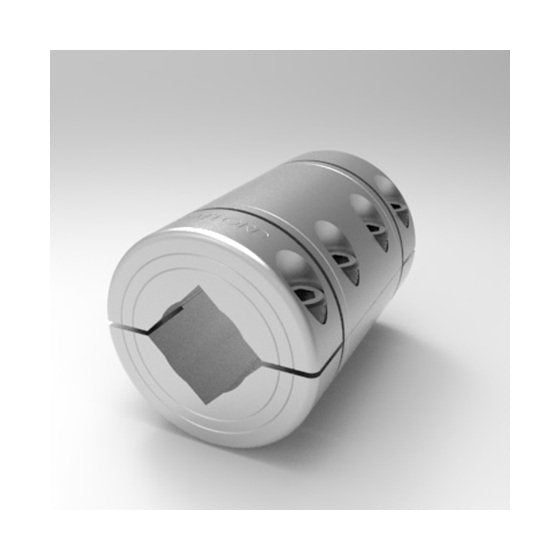

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-0a8773
Stafford's Precision Sleeve Square Bore Couplings ensure precise shaft alignment and convenient assembly with high clamping power. Available in Steel, Stainless Steel, and Aluminum options for diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$29.99
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings by Stafford are designed for precise shaft alignment, with axial runout less than .001" TIR. This two-piece coupling allows convenient assembly and adjustment, featuring a solid center section for close tolerance fit on ground shafting. The exclusive Accu-Clamp™ design with self-centering clamping collars ensures high clamping power and protection from shaft damage. Available in Steel, Stainless Steel, and Aluminum options for varied applications.
Product Specifications
Dimensional Attributes Bore Size A
7/8 in
Dimensional Attributes Bore Size B
7/8 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.375 in
Specifications Alloy
2024
Specifications Approximate Weight
0.93 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
15A014014PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040566
