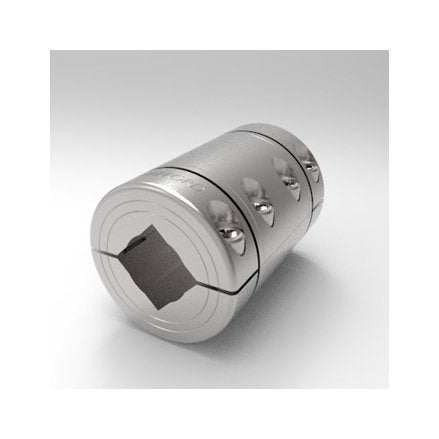

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-9048c7
Enhance shaft alignment with our Precision Sleeve Square Bore Couplings featuring a balanced design for stability and convenient assembly. Available in Steel, Stainless Steel, and Aluminum.
Regular price
$112.42
Regular price
Sale price
$112.42
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$112.42
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$112.42
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings from our Signature series feature a balanced design with opposing screw heads for enhanced stability and precise shaft alignment. These two-piece split couplings have an axial runout of less than .001" TIR, ensuring optimal performance. Stafford's exclusive design incorporates self-centering clamping collars at both ends, allowing for convenient assembly and adjustment. With a solid center section for a close tolerance fit on ground shafting and a smooth bore to protect shafts from damage, these couplings are crafted from high-quality stainless steel for durability and reliability. Available in Steel, Stainless Steel, and Aluminum, these couplings are non-marring, easy to adjust, and offer high clamping power.
Product Specifications
Dimensional Attributes Bore Size A
9/16 in
Dimensional Attributes Bore Size B
9/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Length
2.625 in
Specifications Alloy
303
Specifications Approximate Weight
1.28 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
112.42 USD
Specifications Material
Stainless Steel
Specifications Part Number
15S009009PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040412
