Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-c56895
Achieve precise shaft alignment with our high-clamping precision sleeve couplings. Convenient assembly, high-quality Aluminum Alloy 2024, and exclusive Accu-Clamp™ design.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$45.99
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

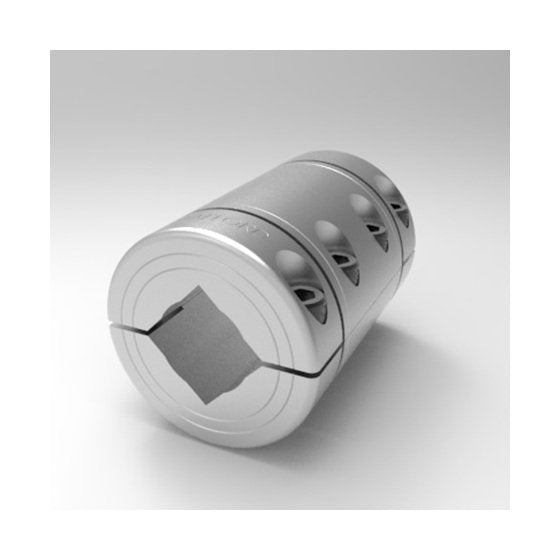

The Precision Sleeve Square Bore Couplings are meticulously crafted to ensure precise shaft alignment with axial runout less than .001" TIR. Made of high-quality Aluminum Alloy 2024, these two-piece split couplings feature a smooth bore design that protects shafts from damage. The exclusive Stafford Precision Sleeve design offers a solid center section for a close tolerance fit on ground shafts. With an Accu-Clamp™ self-centering clamping collar setup, these couplings allow for convenient assembly and adjustment while providing high clamping power. Stocked in steel, stainless steel, and aluminum variants.
Product Specifications
Dimensional Attributes Bore Size A
11/16 in
Dimensional Attributes Bore Size B
11/16 in
Dimensional Attributes Outside Diameter
2.125 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.250 in
Specifications Alloy
2024
Specifications Approximate Weight
0.71 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Aluminum
Specifications Part Number
15A011011PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040542
