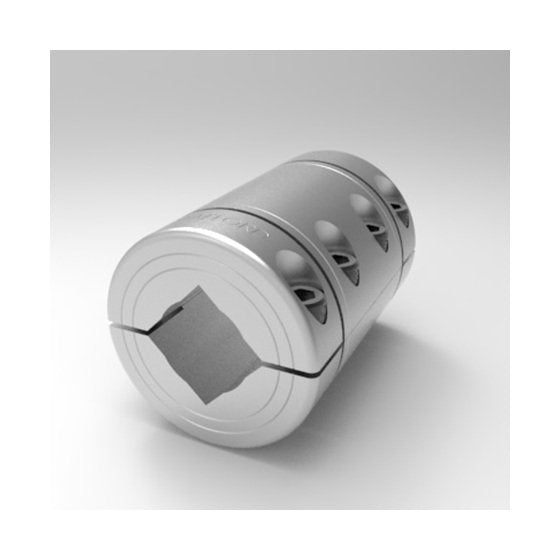

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-5c3b72
Achieve precise shaft alignment and easy assembly with our Precision Sleeve Square Bore Couplings. Solid construction, high clamping power, and self-centering clamping collars for optimal performance.
Regular price
$109.73
Regular price
Sale price
$109.73
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$109.73
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$109.73
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings from our Signature series are engineered to ensure impeccable shaft alignment with axial runout less than .001" TIR. Featuring a two-piece design for easy assembly and adjustment, these couplings boast a solid center section for a precise fit on ground shafting. The exclusive Accu-Clamp™ design includes self-centering clamping collars at both ends to enhance stability. Crafted from high-quality Aluminum Alloy 2024, these couplings are non-marring, easy to adjust, and offer remarkable clamping power, safeguarding shafts from damage.
Product Specifications
Dimensional Attributes Bore Size A
5/8 in
Dimensional Attributes Bore Size B
5/8 in
Dimensional Attributes Outside Diameter
2.000 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.000 in
Specifications Alloy
2024
Specifications Approximate Weight
0.71 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
109.73 USD
Specifications Material
Aluminum
Specifications Part Number
15A010010PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040535
