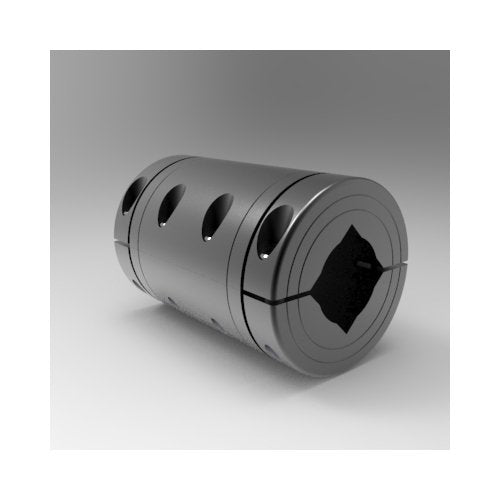

Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-a50c7f
Accu-Clamp™ Precision Sleeve Couplings: Ideal for precise shaft alignment with high clamping power and convenient assembly. Steel, Stainless Steel, and Aluminum options available.
Regular price
$94.56
Regular price
Sale price
$94.56
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$94.56
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$94.56
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Sleeve Square Bore Couplings offer impeccable alignment on square shafts, ensuring axial runout less than .001" TIR. This two-piece design allows for easy assembly and adjustment, with a smooth bore to protect shafts. Featuring Stafford's exclusive solid center section for a tight fit and Accu-Clamp™ self-centering clamping collars, these couplings are precision machined, non-marring, and provide high clamping power. Available in Steel, Stainless Steel, and Aluminum variants.
Product Specifications
Dimensional Attributes Bore Size A
1 in
Dimensional Attributes Bore Size B
1 in
Dimensional Attributes Outside Diameter
2.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
3.750 in
Specifications Alloy
1215
Specifications Approximate Weight
3.7 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
94.56 USD
Specifications Material
Steel
Specifications Part Number
15L100100PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040351
