Precision Sleeve Square Bore Couplings
Precision Sleeve Square Bore Couplings
SKU:ROU-ce9c7f
Achieve precise shaft alignment with our Precision Sleeve Square Bore Couplings. Two-piece split design for easy assembly and adjustment.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Precision Sleeve Square Bore Couplings
$59.99
Quantity: 1
Claim Your Seller Account
Precision Sleeve Square Bore Couplings
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

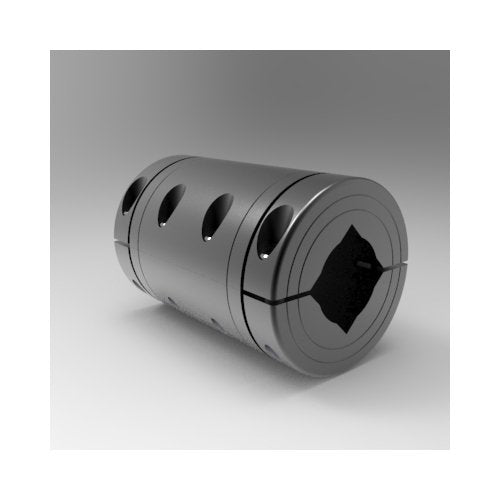

The Precision Sleeve Square Bore Couplings from our Signature series are designed with a balanced two-piece split construction for precise shaft alignment. With an axial runout of less than .001" TIR, these couplings assure accuracy and convenience in assembly and adjustment. Featuring a solid center section for a close tolerance fit on ground shafting, our exclusive design with integral self-centering clamping collars ensures high clamping power without marring. Available in Steel, Stainless Steel, and Aluminum options, these couplings are machined to perfection to protect shafts from damage and provide reliable performance.
Product Specifications
Dimensional Attributes Bore Size A
9/16 in
Dimensional Attributes Bore Size B
9/16 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 3/4
Dimensional Attributes Total Length
2.625 in
Specifications Alloy
1215
Specifications Approximate Weight
1.38 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
15L009009PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040306
