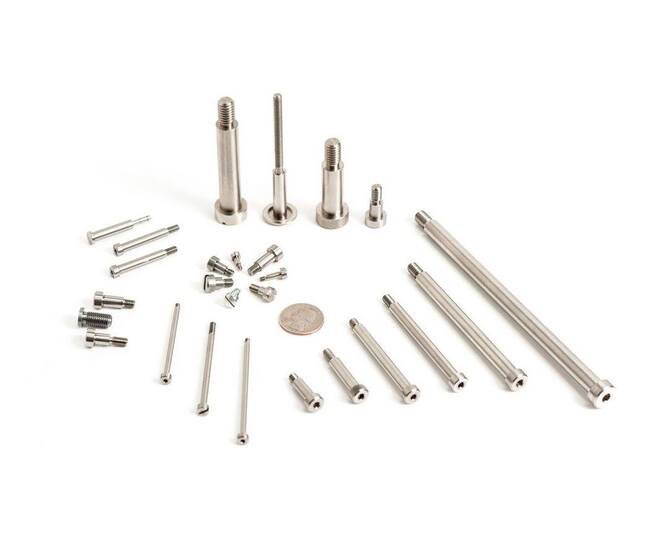

The Precision Slotted Shoulder Screws by Sperry Automatics Company are meticulously crafted threaded fasteners with a plain, precision machined shank, available in various metals like Brass, Aluminum, Steel, and Copper. Customizable with Socket, Slotted, Phillips, and Knurled heads, these screws offer versatile options. With specifications meeting industry standards UNC, IFI, MS, and more, these screws ensure optimal performance and reliability. From materials like Stainless Steel to finishing options including Anodize and Heat Treat, these shoulder screws are built to deliver precision in every application.
Product Specifications
Additional Information Additional Services
Shoulder Bolts to I.F.I. Standards: We stock many shoulder screws (Shoulder Bolts) made to Industrial Fastener Institute Standards.
Specifications Equipment List
D6's | CNC'S STARS | DAVENPORTS | ESCOMATICS | D4's | 1/4" diameter capacity | 16 MM CAPACITY | 20 MM CAPACITY | 5/32" diameter capacity | Capacities .8125 Round .6875 Hex | Cross Drilling, Slotting, & Threading Attachments | Multi-Spindle Machines | Slotting & Cross Drilling
Specifications Finishing
Annealing | Anodize | Black Oxide | Bright Dip | Gold | Heat Treat | Irridite | Nickel | Passivate | Silver | Tin | Wax | Zinc
Specifications Head Diameter Max
9/32 Inch
Specifications Head Length Max
1/8 Inch
Specifications Materials
Aluminum 2011-T3, 2024-T4, 6061-T6 | Beryllium Beryllium Copper | Brass360-1/2 Hard - Free Cutting | Bronze | Copper Tellurium #1450; | Nylon Natural - Black | Stainless 303, 316, 440C, 416-HT-26/32 | Steel 12L 14, 12L 15, 1117, 1137, 1018 | Teflon Virgin-Premium Electrical | Tellurium Tellurium Copper | Titanium Grade 2
Specifications Secondary Operations
Broaching | Complete Tool and Cam Making On Site | Cross Drilling | Drilling | Grinders | Hand Screw | Lathes | Milling | Roll Threading | Slotting | Stamping
Specifications Shoulder Diameter
.1560 Inch | 5/32 Inch
Specifications Shoulder Length
0.002 Inch | 0.1255 Inch
Specifications Thread
#6-32
Specifications Thread Length Max
3/16 Inch
