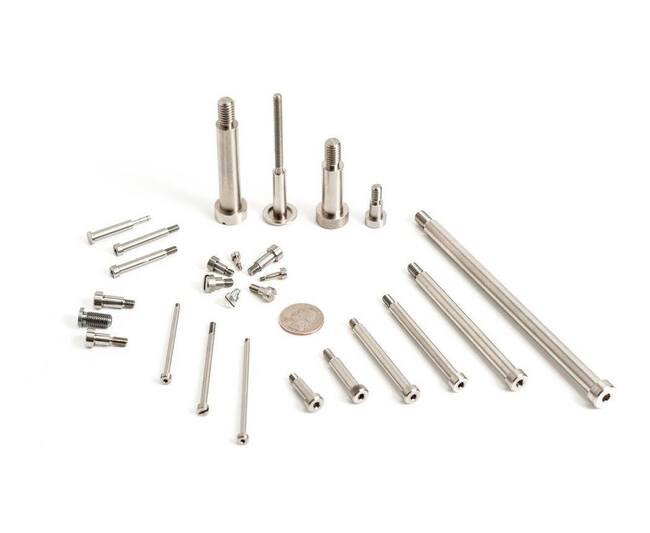

Precision Slotted Shoulder Screws
Precision Slotted Shoulder Screws
SKU:SHO-970627
Explore our diverse range of Precision Slotted Shoulder Screws, meeting top-tier standards for exceptional fastening solutions.
Regular price
$13.99
Regular price
Sale price
$13.99
Unit price
per
Initiate Order
Precision Slotted Shoulder Screws
$13.99
Quantity: 1
Claim Your Seller Account
Precision Slotted Shoulder Screws
$13.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Slotted Shoulder Screws manufactured by Sperry Automatics Company are expertly crafted threaded fasteners designed for superior precision and durability. These shoulder screws are available in a variety of materials including Aluminum, Brass, Stainless Steel, and Copper, meeting the stringent standards of Federal/DoD procurement, GSA requirements, FAR compliance factors, and DLA standards. With customizable head types such as Socket, Slotted, Phillips, and Knurled, and options for different finishes and secondary operations, these screws offer unmatched versatility and quality for both consumer and institutional buyers.
Product Specifications
Additional Information Additional Services
Shoulder Bolts to I.F.I. Standards: We stock many shoulder screws (Shoulder Bolts) made to Industrial Fastener Institute Standards.
Specifications Equipment List
D6's | CNC'S STARS | DAVENPORTS | ESCOMATICS | D4's | 1/4" diameter capacity | 16 MM CAPACITY | 20 MM CAPACITY | 5/32" diameter capacity | Capacities .8125 Round .6875 Hex | Cross Drilling, Slotting, & Threading Attachments | Multi-Spindle Machines | Slotting & Cross Drilling
Specifications Finishing
Annealing | Anodize | Black Oxide | Bright Dip | Gold | Heat Treat | Irridite | Nickel | Passivate | Silver | Tin | Wax | Zinc
Specifications Head Diameter Max
9/32 Inch
Specifications Head Length Max
1/8 Inch
Specifications Materials
Aluminum 2011-T3, 2024-T4, 6061-T6 | Beryllium Beryllium Copper | Brass360-1/2 Hard - Free Cutting | Bronze | Copper Tellurium #1450; | Nylon Natural - Black | Stainless 303, 316, 440C, 416-HT-26/32 | Steel 12L 14, 12L 15, 1117, 1137, 1018 | Teflon Virgin-Premium Electrical | Tellurium Tellurium Copper | Titanium Grade 2
Specifications Secondary Operations
Broaching | Complete Tool and Cam Making On Site | Cross Drilling | Drilling | Grinders | Hand Screw | Lathes | Milling | Roll Threading | Slotting | Stamping
Specifications Shoulder Diameter
.1560 Inch | 5/32 Inch
Specifications Shoulder Length
0.002 Inch | .3130 Inch
Specifications Thread
#6-32
Specifications Thread Length Max
3/16 Inch
