Precision Slotted Shoulder Screws
Precision Slotted Shoulder Screws
SKU:SHO-a17479
Shop our versatile Precision Slotted Shoulder Screws for precise fastening needs. Available in various materials and customizable head types.
Regular price
$23.99
Regular price
Sale price
$23.99
Unit price
per
Initiate Order
Precision Slotted Shoulder Screws
$23.99
Quantity: 1
Claim Your Seller Account
Precision Slotted Shoulder Screws
$23.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

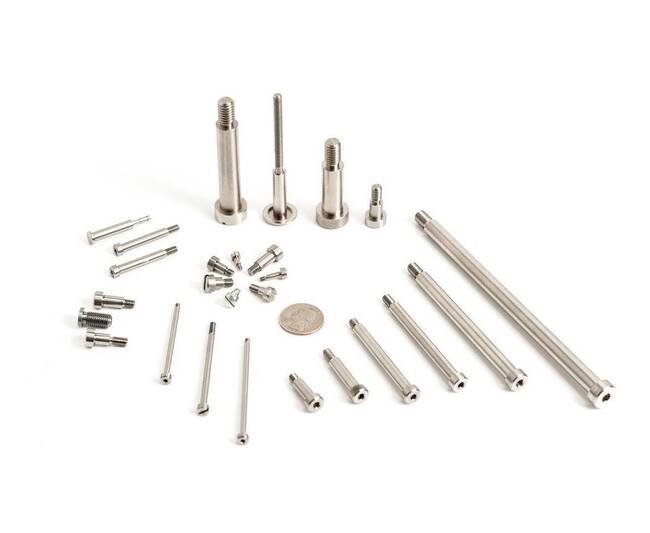

The Precision Slotted Shoulder Screws by Sperry Automatics Company are expertly crafted threaded fasteners with a precision-machined shank, available in a wide range of materials including Aluminum, Stainless Steel, Brass, Copper, and more. These shoulder screws can be customized with various head types like Socket, Slotted, Phillips, and Knurled. With shoulder diameters of .2495 inch or 1/4 inch, and various thread options, these screws offer exceptional versatility for different applications. The extensive range of finishing options and secondary operations such as drilling, milling, and stamping make these screws ideal for industrial settings.
Product Specifications
Additional Information Additional Services
Shoulder Bolts to I.F.I. Standards: We stock many shoulder screws (Shoulder Bolts) made to Industrial Fastener Institute Standards.
Specifications Equipment List
D6's | CNC'S STARS | DAVENPORTS | ESCOMATICS | D4's | 1/4" diameter capacity | 16 MM CAPACITY | 20 MM CAPACITY | 5/32" diameter capacity | Capacities .8125 Round .6875 Hex | Cross Drilling, Slotting, & Threading Attachments | Multi-Spindle Machines | Slotting & Cross Drilling
Specifications Finishing
Annealing | Anodize | Black Oxide | Bright Dip | Gold | Heat Treat | Irridite | Nickel | Passivate | Silver | Tin | Wax | Zinc
Specifications Head Diameter Max
3/8 Inch
Specifications Head Length Max
3/16 Inch
Specifications Materials
Aluminum 2011-T3, 2024-T4, 6061-T6 | Beryllium Beryllium Copper | Brass360-1/2 Hard - Free Cutting | Bronze | Copper Tellurium #1450; | Nylon Natural - Black | Stainless 303, 316, 440C, 416-HT-26/32 | Steel 12L 14, 12L 15, 1117, 1137, 1018 | Teflon Virgin-Premium Electrical | Tellurium Tellurium Copper | Titanium Grade 2
Specifications Secondary Operations
Broaching | Complete Tool and Cam Making On Site | Cross Drilling | Drilling | Grinders | Hand Screw | Lathes | Milling | Roll Threading | Slotting | Stamping
Specifications Shoulder Diameter
.2495 Inch | 1/4 Inch
Specifications Shoulder Length
0.002 Inch | 1.0005 Inch
Specifications Thread
#10-32
Specifications Thread Length Max
1/4 Inch
