Precision Stationary Air Chucks 6 inch
Precision Stationary Air Chucks 6 inch
SKU:PRE-86c49d
Enhance precision in milling, drilling, and tapping with our Stationary Air Chucks. Achieve unparalleled accuracy and stability.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Precision Stationary Air Chucks 6 inch
$499.99
Quantity: 1
Claim Your Seller Account
Precision Stationary Air Chucks 6 inch
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

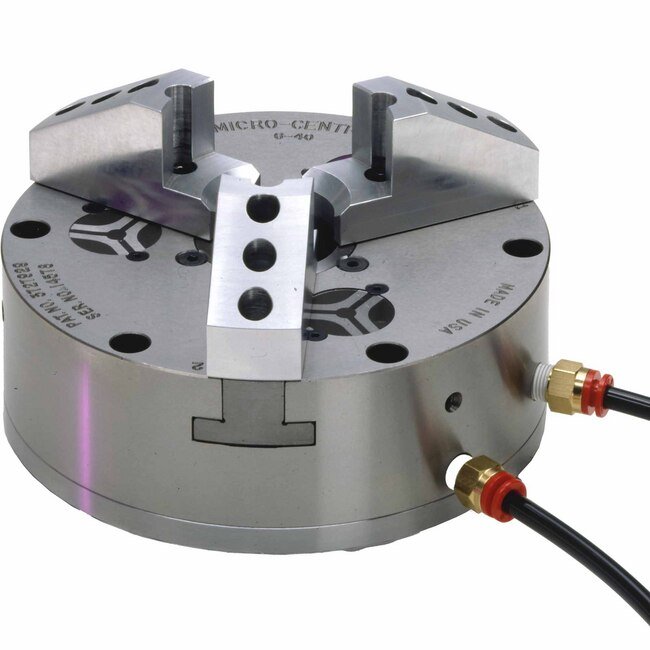

Experience unparalleled precision with our Precision Stationary Air Chucks, designed for milling, drilling, and tapping applications. With a chuck accuracy of .00005 inches, jaw stroke of .040 inches, and maximum air pressure of 100 psi, these chucks provide exceptional stability and reliability. Additionally, options for MicroCentric Chucks offer quick change top jaws for increased efficiency, ultra-precision options for accuracy to .000020 inches, and automatic lubrication for seamless operation. Each chuck comes equipped with a set of steel top jaws for added convenience.
Product Specifications
Options For Microcentric Chucks Al Automatic Lubrication Option
Lubricate the chuck with an electric pumpThe AL option allows lubricant to be supplied to the chuck through the air tube assembly during the machine cycle. This option is recom mended for unmanned machine cells and other high volume production applications.An AL chuck is equipped with a special center housing that channels the lubricant to the moving components within the chuck. The machine's way lubrication pump is typically used to also supply lubricant to the chuck.For rotating applications a rotary union must be adapted to the air tube assembly in order to provide a connection for the lubrication line. The AL Option is also available on Stationary Chucks.
Options For Microcentric Chucks Qc Quick Change Top Jaw System
Patented jaw locating system reduces setup time by maintaining .0002" (0.005mm) TIR accuracy after jaw change, without remachining top jaws.MicroCentric's QC precision locating jaw system reduces setup time and increases a machine's flexibility for JIT scheduling by eliminating the time consuming process of remachining top jaws after change over. QC top jaws can also be machined "off-line" on a QC Jaw Turning Fixture or on another QC chuck.QC System Accuracies .0002" TIR when jaws are machined and replaced on the same chuck. .0008" TIR when jaws are machined on another chuck or on a QC turning fixture. QC System Features Blank QC top jaws are made from A-2 tool steel that can be hardened to Rc 60 without distorting the tapered locating holes. QC Jaw Turning fixtures are available to machine top jaws "off-line" and maximize a machine's run time. Custom hardened and ground QC top jaws can be designed for specific workpiece applications are quoted on request. QC System DesignQC top jaws are located by two tapered locating buttons that are pressed into jig ground locating holes in the chuck's base jaws. QC top jaws feature jig ground tapered locating holes that mate with the tapered locating buttons on the chuck's base jaws. Due to the close tolerances that are held on both the tapered locating buttons and locating holes, the top jaw seats on the OD of the button as well as on the face of the master jaw. This precision fit eliminates clearance and assures high locating accuracy and rigidity.
Options For Microcentric Chucks Up Ultra Precision Option
Repeating accuracy to .000020" (0.0005mm) TIRFor applications which require extremely close chucking accuracy, MicroCentric will selectively fit and certify a chuck to an accuracy of .000050" (0.001mm) or .000020" (0.0005mm) depending on model.Note that temperature variations, changes in air pressure, spindle runout, and the condition and design of top jaws will affect chuck accuracy.

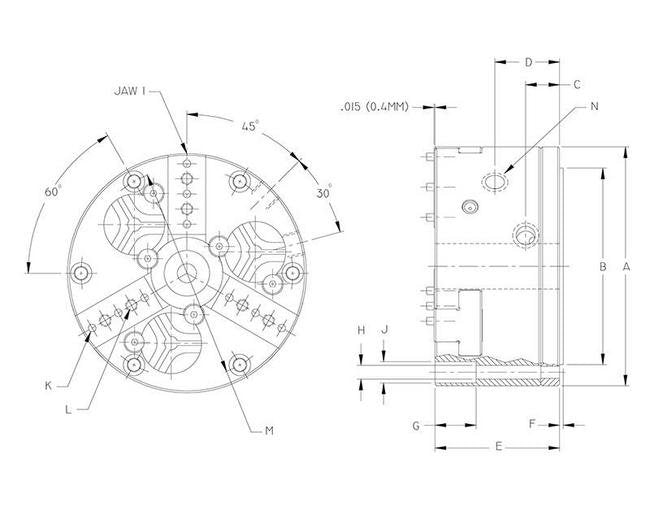

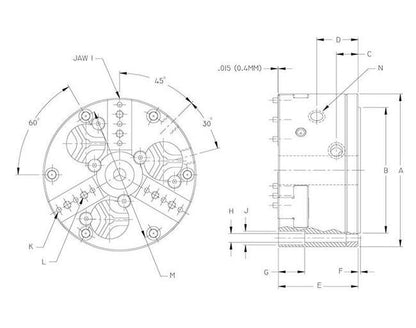

Specifications A Dimension
5.950 in | 151.1 mm
Specifications B Dimension
4.920 in | 125.0 mm
Specifications Chuck Accuracy
.00005 in | .0012 mm
Specifications Chuck Size
6 in | 150 mm
Specifications Chuck Weight
14 lb | 6.4 kg
Specifications C Dimension
0.560 in | 14.2 mm
Specifications D Dimension
1.070 in | 27.2 mm
Specifications E Dimension
2.060 in | 52.3 mm
Specifications F Dimension
0.120 in | 3.0 mm
Specifications G Dimension
0.680 in | 17.3 mm
Specifications H Dimension
0.265 in | 6.7 mm
Specifications Jaw Stroke
.040 in | 1.0 mm
Specifications J Dimension
0.430 in | 10.9 mm
Specifications K Dimension
0.125 in | 3.2 mm
Specifications L Dimension
M5
Specifications Max Air Pressure
100 psi | 7.0 kg/cm²
Specifications M Dimension
5.350 in | 135.9 mm
Specifications No Of Jaws
3
Specifications N Dimension
1/8 NPT
Specifications Through Hole
1.000 in | 25.4 mm
Standard Equipment 0
All Stationary Air Chucks include: One set steel top jaws
