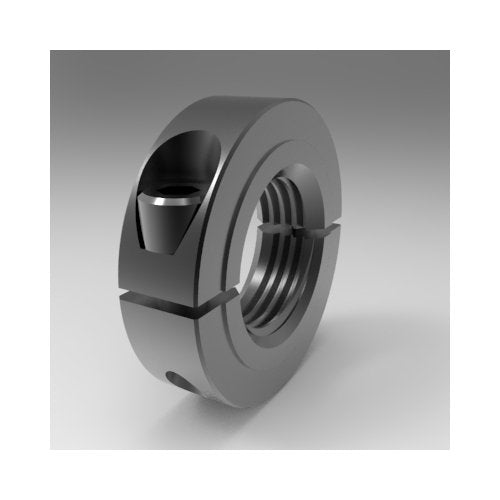

Precision Steel Threaded Hub Collar 1/2-20 UNF/UNC Two-Piece Split Clamp

Name: Precision Steel Threaded Hub Collar 1/2-20 UNF/UNC Two-Piece Split Clamp
Brand: Stafford Manufacturing Corp.
SKU: ROU-643688
Price: 12.99 USD
Availability: OutOfStock

SKU:ROU-643688

Enhance shaft performance with our Precision Steel Threaded Hub Collar featuring high clamping power and easy adjustability.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Steel Threaded Hub Collar is engineered for use on standard UNF shafts, with a precision-machined hub limiting contact area for reduced friction. Perfect for bearing inner-races, this collar offers superior clamping power over set-screw types. Non-marring, adjustable, and disassembleable, it provides high-quality performance and can be placed anywhere on a shaft. Crafted from durable steel with black oxide finish, this collar ensures reliability and easy installation.

Product Specifications

Dimensional Attributes Outside Diameter

1.125 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Threaded Bore Size

1/2-20

Dimensional Attributes Width

0.406 in

Specifications Alloy

1215

Specifications Approximate Weight

0.09 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L008F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030161
