Precision Stop Plates for Chuck CB65-NX,ND&NS
Precision Stop Plates for Chuck CB65-NX,ND&NS
SKU:QUI-28aae7
Premium alloy steel stop plates for Chuck CB65-NX,ND&NS, ensuring precision and durability in machining applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Stop Plates for Chuck CB65-NX,ND&NS
$29.99
Quantity: 1
Claim Your Seller Account
Precision Stop Plates for Chuck CB65-NX,ND&NS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

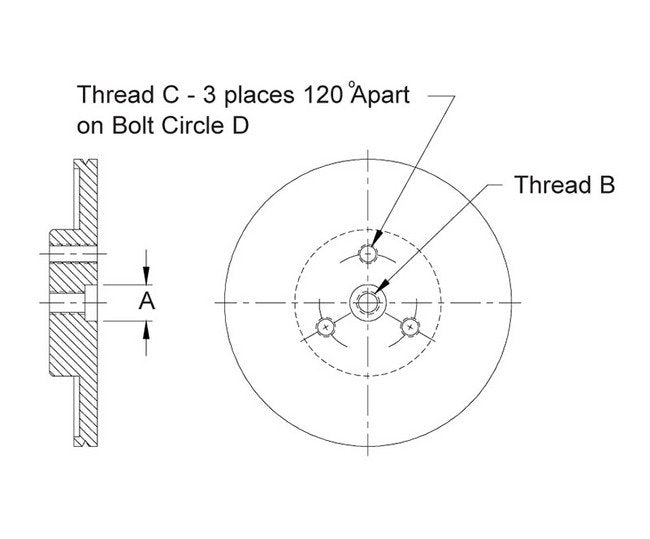

Our precision stop plates are meticulously crafted from hardened and ground alloy steel to ensure superior durability and performance. With dimensions A: .375 in, B: M6, C: M5, and D: 1.000 in, these stop plates are designed to seamlessly fit chuck CB65-NX,ND&NS, providing precise and reliable stopping functionality. Ideal for use in Quick Change Collet Chucks, these plates offer exceptional accuracy and stability during machining operations, ultimately enhancing productivity and machining outcomes.
Product Specifications
Specifications A Dimension
.375 in | 9.5 mm
Specifications B Dimension
M6
Specifications Chuck
CB65-NX,ND&NS
Specifications C Dimension
M5
Specifications D Dimension
1.000 in | 25.4 mm
Specifications Item No
16 065 227
