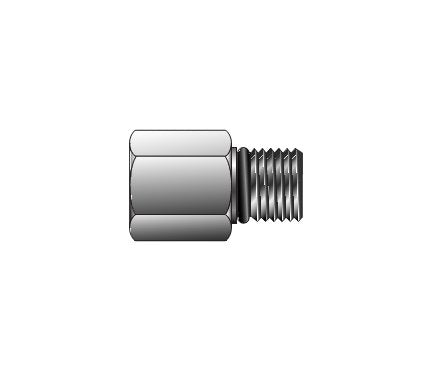

Precision Straight Thread Reducer/Expander F5OG5 - FBSPP x BSPP
Precision Straight Thread Reducer/Expander F5OG5 - FBSPP x BSPP
SKU:FIT-341d6b
Precision Straight Thread Reducer/Expander F5OG5 - Leak-free high-quality instrument fitting for industrial connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Straight Thread Reducer/Expander F5OG5 - FBSPP x BSPP
$24.99
Quantity: 1
Claim Your Seller Account
Precision Straight Thread Reducer/Expander F5OG5 - FBSPP x BSPP
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Straight Thread Reducer/Expander F5OG5 is a top-tier instrument pipe fitting designed for leak-free connections in various industrial applications. Manufactured by Parker Hannifin in Huntsville, Alabama, this fitting meets the highest quality standards and offers precise dimensions for reliable performance. Made from durable materials such as steel and brass, it ensures longevity and seamless functionality. Packaged in sealed, clear plastic boxes, it maintains cleanliness and efficiency throughout. Engineered for instrumentation applications, this fitting exceeds ANSI standards and is ideal for process control and instrumentation connections.
Product Specifications

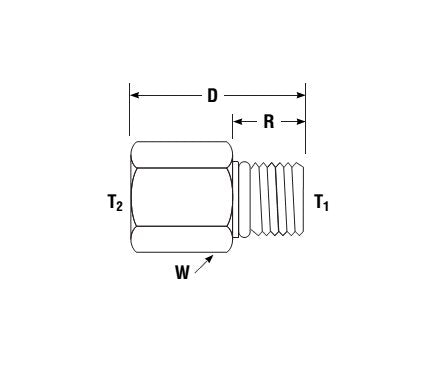

Dimensions Connection Type
FBSPP x BSPP
Dimensions D
1.75 in
Dimensions D2 Drill
.75 in
Dimensions Interchanges With
16-RBST-12
Dimensions O Ring
3-912
Dimensions R
.59 in
Dimensions T1 Port Thd Ununf 2a
1-5/16-12
Dimensions T2 Port Thd Ununf 2b
1-1/16-12
Dimensions W Hex
1 1/2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
