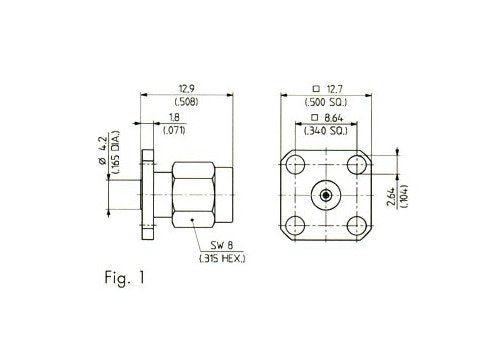

• Precision Subminiature Panel Launchers (Male Connector) - Image 1

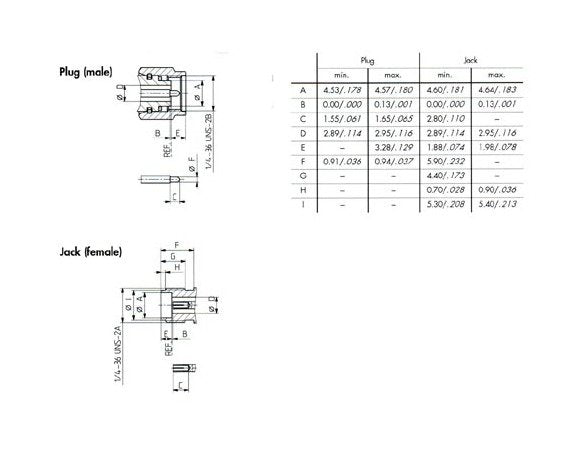

  • Precision Subminiature Panel Launchers (Male Connector) - Image 2
  • Precision Subminiature Panel Launchers (Male Connector) - Image 3
1 3
C. W. Swift & Associates, Inc. →

Precision Subminiature Panel Launchers (Male Connector)

Precision Subminiature Panel Launchers (Male Connector)

SK2-30b48c

High-performance Precision Subminiature Panel Launchers (Male Connector) for reliable signal transmission in high-frequency applications.

$49.99
$49.99
Sale

Initiate Order

Precision Subminiature Panel Launchers (Male Connector)

Precision Subminiature Panel Launchers (Male Connector)

$49.99

Quantity: 1

Claim Your Seller Account

Precision Subminiature Panel Launchers (Male Connector)

Precision Subminiature Panel Launchers (Male Connector)

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Precision Subminiature Panel Launchers (Male Connector) from the SK series PC 3.5 by HUBER+SUHNER offer exceptional performance and durability for high-frequency applications. With an impedance of 50 Ohms and a frequency range from DC to 40 GHz, these launchers ensure reliable signal transmission. Constructed with beryllium-copper hardened center contacts and support beads made of PPO, they are designed to withstand extreme temperatures from -67 to 257 degrees F. Meeting rigorous institutional procurement standards, these panel launchers are ideal for demanding applications that require the highest quality and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Body Material
beryllium-copper hardened
Specifications Centre Contacts
beryllium-copper hardened
Specifications Centre Contact Resistance M Ohms
<3
Specifications Configuration
panel
Specifications Connection
male
Specifications Connector Series
SK
Specifications Contact Captivation Lbs
>4.9
Specifications Dielectic Withstanding Voltage Sea Level V Rms
750
Specifications Durability Matings
>500
Specifications Flange Type
square
Specifications Frequency Ghz
DC...40
Specifications Impedance Ohms
50
Specifications Insulation Resistance M Ohms
>5000
Specifications Mounting Hole
ML 77
Specifications Outside Contact Resistance M Ohms
<2
Specifications Packaging
single
Specifications Support Beads
PPO
Specifications Temperature Range Degrees F
-67 to 257
Specifications Working Voltage Sea Level V Rms
<250
