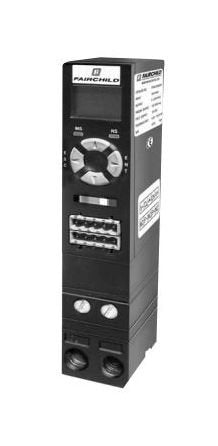

Precision T7950 Electro-Pneumatic Transducer

Name: Precision T7950 Electro-Pneumatic Transducer
Brand: B & B Instruments, Inc.
SKU: ELE-d7b0ad
Price: 249.99 USD
Availability: OutOfStock

SKU:ELE-d7b0ad

The Precision T7950: Reliable, precise control for pneumatic systems.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision T7950 Electro-Pneumatic Transducer is a highly versatile and reliable instrument designed for precise control and measurement in pneumatic systems. With a maximum flow capacity of 11 ft³/min, output pressure ranges from 0 to 120 psig, ensuring consistent performance. Its compact dimensions of 1-1/2 x 3 x 8-1/2 inches make it suitable for various industrial applications. This transducer boasts European Conformity (CE) approval, meeting stringent quality standards for institutional procurement.

Product Specifications

Specifications Dc Voltage Supply

0 to 10 V | 4 to 20 mA

Specifications Dimensions

1-1/2 x 3 x 8-1/2 in | 38 x 76 x 216 mm

Specifications Exhaust Capacity

3.4 mÂ³/h

Specifications Full Scale Fs Accuracy

0.5 %

Specifications Full Scale Fs Repeatability

<0.1 %

Specifications Maximum Air Consumption At Steady State

0 ftÂ³/min | 0 mÂ³/h

Specifications Maximum Flow Capacity At Supply Of 150 Pounds Per

11 ftÂ³/min | 18.7 mÂ³/h

Specifications Output Pressure

0 to 120 psig | 3 to 115 psig | 0 to 800 kPa | 20 to 100 kPa

Specifications Pipe Size

1/4

Specifications Pressure Supply

150 psig | 1000 kPa

Specifications Underwriting Group Approvals

European Conformity (CE)

Precision T7950 Electro-Pneumatic Transducer
