Precision Temp Reference Converter
Precision Temp Reference Converter
SKU:INT-c735dd
Convert thermocouple wire to copper wire effortlessly with the Precision Temp Reference Converter. Supports up to 32 thermocouples with cold junction temperature compensation and precise temperature readings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Precision Temp Reference Converter
$299.99
Quantity: 1
Claim Your Seller Account
Precision Temp Reference Converter
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

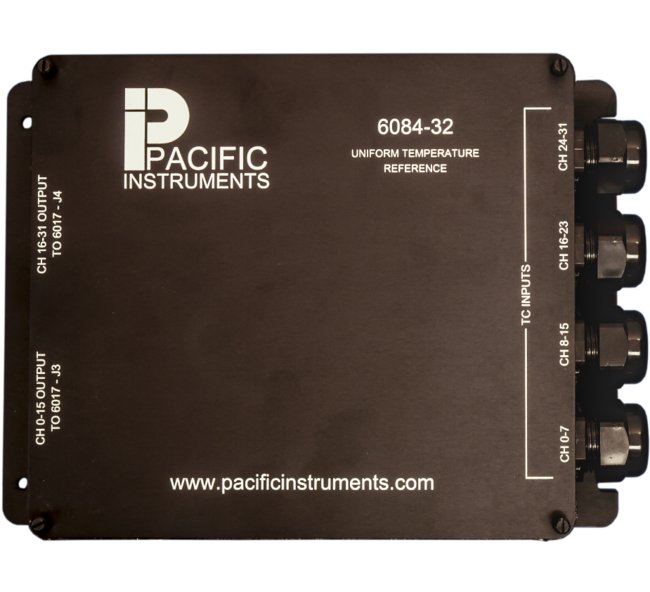

The Precision Temp Reference Converter (PTRC) is a versatile device designed to seamlessly convert thermocouple wire to copper wire within a controlled temperature environment. With the ability to accommodate up to 32 thermocouples of various types, this passive device utilizes a precision RTD sensor for accurate temperature measurements. The PTRC features compatibility with a range of thermocouple types, offering cold junction temperature compensation and support for temperature display in Celsius, Fahrenheit, or Kelvin. Additionally, it comes equipped with PI660 Software for easy compensation and conversion. The unit's compact design allows for remote installation to optimize measurement accuracy and reduce wiring costs, making it ideal for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accuracy 6084 32 Rtd 2u Accuracy
±0.5°C
Accuracy 6084 32 Rtd Accuracy
±0.25°C
Environmental Humidity
Up to 95% without condensation.
Environmental Temperature
0°C to +50°C. Maximum rate of change for specified accuracy is 10°C/hour.
Input 6084 32 Rtd 2u Inputs
Thermocouple mini-jack. Type T standard. Other thermocouple types available upon request.
Input 6084 32 Rtd Inputs
Screw terminals
Ordering Information 6084 32 Rtd
Uniform Temperature Reference for remote installation.
Ordering Information 6084 32 Rtd 2u
Uniform Temperature Reference for rack installation. Type T mini.
Outputs 6084 32 Rtd 2u Outputs
2-Meter cables supplied for connection to the 6017 Voltage Input Module. Custom length cables are available.
Outputs 6084 32 Rtd Outputs
2-Meter cables supplied for connection to the 6017 Voltage Input Module. Custom length cables are available.
Size 6084 32 Rtd 2u Size
19-inch rack mounting, 2U (3.5 inches high). Depth is 8 inches.
Size 6084 32 Rtd Size
9 inches wide including mounting flanges, 8 inches high, 2.5 inches deep.
