Precision Threaded Hub Collars
Precision Threaded Hub Collars
SKU:ROU-2c665b
Superior clamping power with precision-machined hub for reduced friction. Ideal for UNF shaft applications. RoHS2 and REACH compliant.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Precision Threaded Hub Collars
$25.99
Quantity: 1
Claim Your Seller Account
Precision Threaded Hub Collars
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

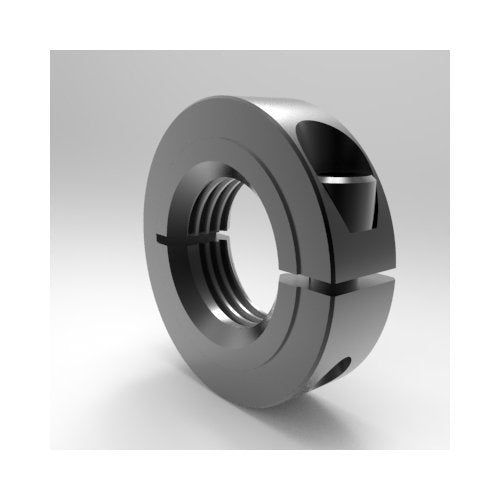

The Precision Threaded Hub Collars provide superior clamping power over set-screw type collars, perfect for standard UNF shaft applications. Featuring a precision-machined hub on the face to reduce friction, these collars are ideal for use as a bearing inner-race. Made of durable steel with black oxide finish, these low-profile collars offer easy adjustment and high holding power. Designed with a 1-1/4-7 threaded bore size and 2.062" outside diameter, these collars are RoHS2 and REACH compliant.
Product Specifications
Dimensional Attributes Outside Diameter
2.062 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Threaded Bore Size
1-1/4-7
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.29 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
HUB7L104C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786030000
