Precision Threaded Hub Shaft Collar

Name: Precision Threaded Hub Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-d0ff09
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-d0ff09

Precision-machined hub collar for UNF shafts with superior holding power and adjustable placement. Ideal for bearing inner-race applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

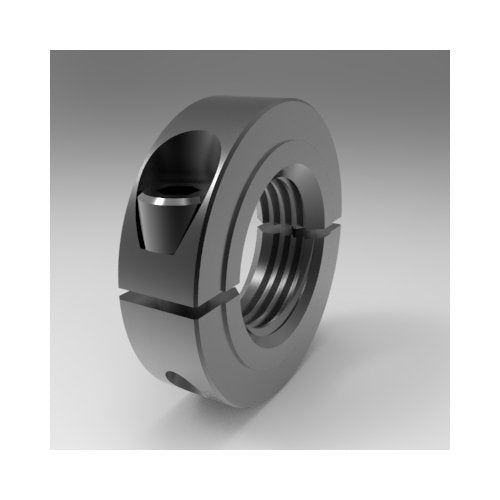

The Precision Threaded Hub Shaft Collar is designed for optimal performance on standard UNF shafts. Featuring a precision-machined hub that minimizes friction, this two-piece split clamp-type collar offers superior holding power over set-screw collars. Ideal for bearing inner-race applications, it is non-marring, easy to adjust, and can be placed anywhere on a shaft. Crafted from high-quality steel with a black oxide finish, this low-profile collar ensures a secure fit with its 1-1/4-7 threaded bore size and 2.062-inch outer diameter.

Product Specifications

Dimensional Attributes Outside Diameter

2.062 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Threaded Bore Size

1-1/4-7

Dimensional Attributes Width

0.500 in

Specifications Alloy

1215

Specifications Approximate Weight

0.29 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB8L104C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786030239

Precision Threaded Hub Shaft Collar
