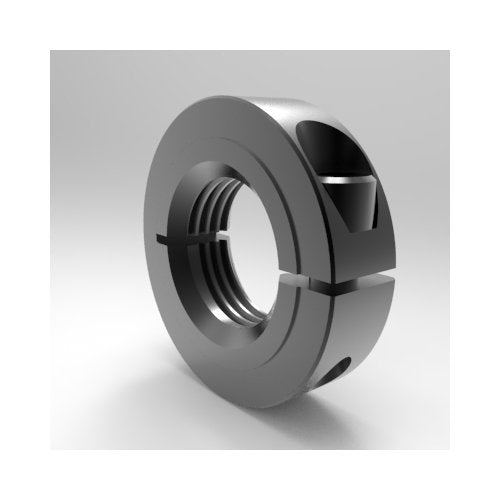

Precision Threaded Hub Split Shaft Collar

Name: Precision Threaded Hub Split Shaft Collar
Brand: Stafford Manufacturing Corp.
SKU: ROU-81a016
Price: 8.99 USD
Availability: OutOfStock

SKU:ROU-81a016

High-precision split shaft collar for UNF shafts, offering superior holding power and easy adjustment.

$8.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Threaded Hub Split Shaft Collar is designed for precision applications, featuring a precision-machined hub that minimizes friction on UNF shafts. Ideal for bearing inner-race use, this collar offers superior holding power over set-screw collars. Made from high-quality steel with a black oxide finish, this collar provides non-marring, easy adjustment with high clamping power. RoHS2 and REACH compliant, this collar meets stringent industry standards for quality and durability.

Product Specifications

Dimensional Attributes Outside Diameter

1.125 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

8-32 x 1/2

Dimensional Attributes Threaded Bore Size

1/2-20

Dimensional Attributes Width

0.406 in

Specifications Alloy

1215

Specifications Approximate Weight

0.09 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

HUB7L008F

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786029936

Precision Threaded Hub Split Shaft Collar
