Precision Threaded Inserts with O-Ring Seal
Precision Threaded Inserts with O-Ring Seal
SKU:PRE-91de22
Achieve precise flow control with Viton-sealed Threaded Inserts for reliable connections in liquid or gas applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Threaded Inserts with O-Ring Seal
$29.99
Quantity: 1
Claim Your Seller Account
Precision Threaded Inserts with O-Ring Seal
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

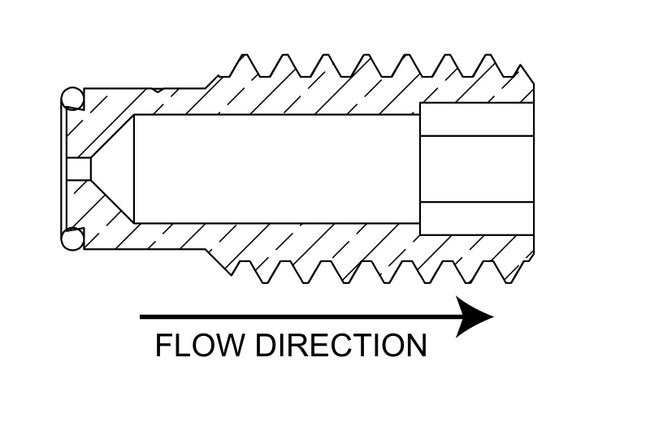

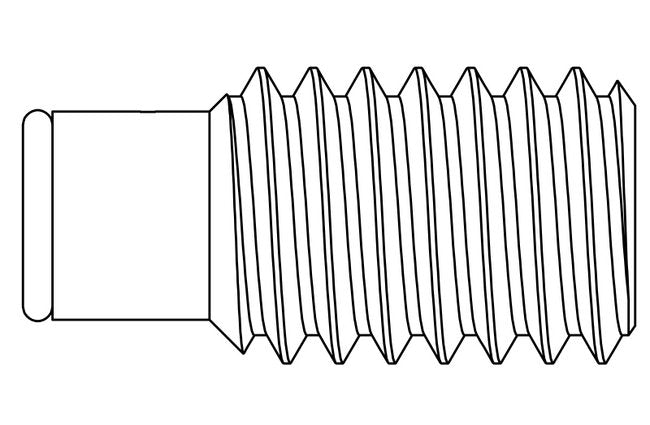

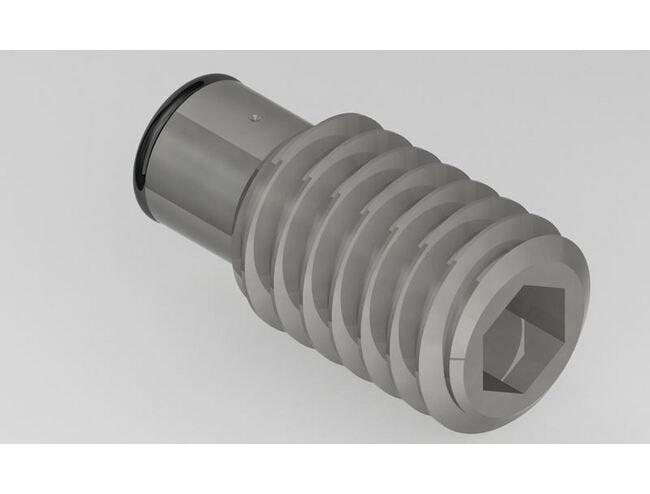

The Precision Threaded Inserts with O-Ring Seal offer precise flow control with a durable Viton seal. Constructed with 303 SS material and available in various thread sizes, these inserts ensure a secure, leak-free connection. With a maximum temperature of 300°F and a maximum operating pressure of 200 psig, they are ideal for liquid or gas applications in fittings, manifolds, and custom parts. Experience accurate flow rates and easy installation with these high-quality threaded inserts.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dimensions Orifice Diameter
0.0730 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Thread Size
5/16-18
Dimensions Total Length
0.640 in
Dimensions Width Across Flats Hex
5/32 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 35.9 | 5 psig: 76.5 | 10 psig: 103 | 15 psig: 125 | 20 psig: 146 | 25 psig: 168 | 30 psig: 190 | 40 psig: 233 | 50 psig: 278 | 60 psig: 320 | 70 psig: 362 | 80 psig: 405 | 90 psig: 447 | 100 psig: 496
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 16.9 | 5 psig (34.5 kPag): 36.1 | 10 psig (69.0 kPag): 48.5 | 15 psig (103.4 kPag): 58.8 | 20 psig (137.9 kPag): 69 | 25 psig (172.4 kPag): 79.3 | 30 psig (206.9 kPag): 89.5 | 40 psig (275.8 kPag): 110 | 50 psig (344.8 kPag): 131 | 60 psig (413.7 kPag): 151 | 70 psig (482.7 kPag): 171 | 80 psig (551.6 kPag): 191 | 90 psig (620.6 kPag): 211 | 100 psig (689.5 kPag): 234
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 66.1 | 20 In. Hg.: 66.1 | 30 In. Hg.: 66.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 31.2 | 20 In. Hg. (508 Mm. Hg.): 31.2 | 30 In. Hg. (762 Mm. Hg.): 31.2
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 50.6 | 10 In. Hg.: 63.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 23.9 | 10 In. Hg. (254 Mm. Hg.): 29.9
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.120 | 2 psig: 0.170 | 3 psig: 0.208 | 4 psig: 0.240 | 5 psig: 0.268 | 6 psig: 0.294 | 7 psig: 0.317 | 8 psig: 0.339 | 9 psig: 0.360 | 10 psig: 0.379 | 15 psig: 0.465 | 20 psig: 0.537 | 30 psig: 0.657 | 40 psig: 0.759 | 50 psig: 0.849 | 60 psig: 0.930 | 70 psig: 1.004 | 80 psig: 1.073 | 90 psig: 1.138 | 100 psig: 1.200
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.454 | 2 psig (13.8 kPag): 0.642 | 3 psig (20.7 kPag): 0.787 | 4 psig (27.6 kPag): 0.908 | 5 psig (34.5 kPag): 1.016 | 6 psig (41.4 kPag): 1.113 | 7 psig (48.3 kPag): 1.202 | 8 psig (55.2 kPag): 1.285 | 9 psig (62.1 kPag): 1.363 | 10 psig (69 kPag): 1.436 | 15 psig (103.4 kPag): 1.759 | 20 psig (137.9 kPag): 2.031 | 30 psig (206.9 kPag): 2.488 | 40 psig (275.8 kPag): 2.873 | 50 psig (344.8 kPag): 3.212 | 60 psig (413.7 kPag): 3.519 | 70 psig (482.7 kPag): 3.801 | 80 psig (551.6 kPag): 4.063 | 90 psig (620.6 kPag): 4.309 | 100 psig (689.5 kPag): 4.542
Specifications Connection A
5/16"-18 UNC Threaded Insert O-ring seal
Specifications Cv
0.120
Specifications Material
303 SS
Specifications Maximum Opening Diameter
0.125 in
Specifications Maximum Operating Pressure
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Nominal Orifice Size
73
Specifications Screened
None
Specifications Seal Material
Viton
