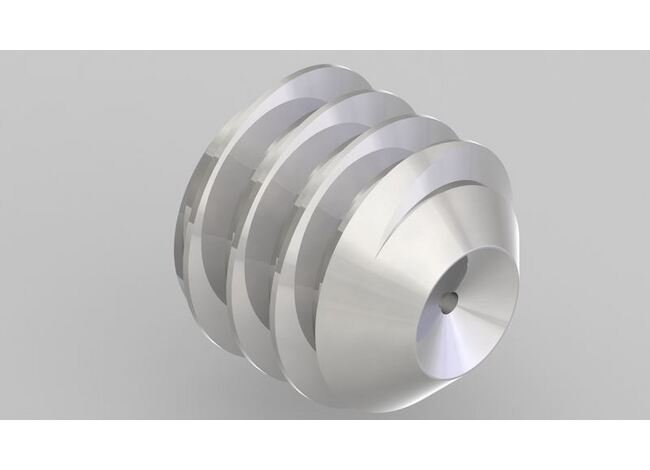

Precision Threaded Orifice Inserts Set, Brass, Multiple Sizes
Precision Threaded Orifice Inserts Set, Brass, Multiple Sizes
SKU:PRE-fed86c
Maximize fluid control precision with our brass threaded orifice inserts in various sizes for reliable flow rate regulation.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Precision Threaded Orifice Inserts Set, Brass, Multiple Sizes
$34.99
Quantity: 1
Claim Your Seller Account
Precision Threaded Orifice Inserts Set, Brass, Multiple Sizes
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

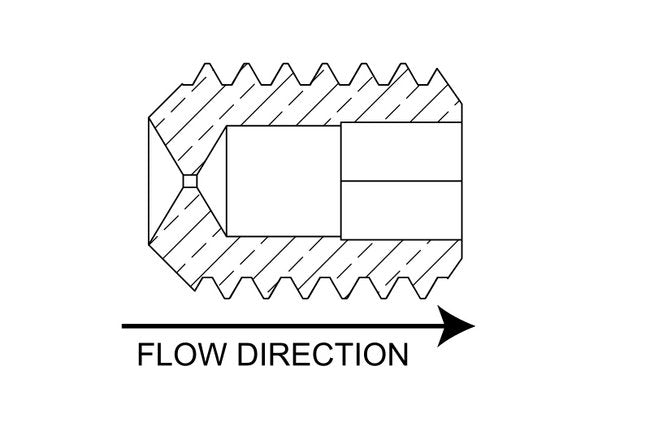

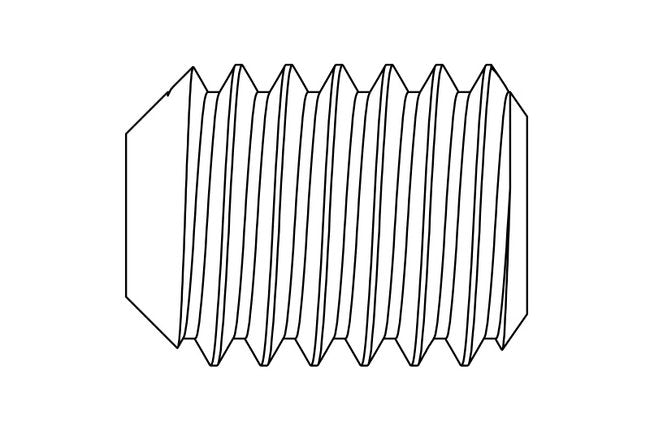

Enhance fluid control with precision using our set screw style threaded orifice inserts. Perfect for fittings, manifolds, or custom parts, these brass inserts come in various sizes from .004" to .063". Experience reliable flow rate regulation for liquids or gases in compliance with industry standards.
Product Specifications
Dimensions Orifice Diameter
0.0142 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 1.11 | 5 psig: 2.56 | 10 psig: 3.56 | 15 psig: 4.45 | 20 psig: 5.28 | 25 psig: 6.06 | 30 psig: 6.80 | 40 psig: 8.33 | 50 psig: 9.83 | 60 psig: 11.3 | 70 psig: 12.8 | 80 psig: 14.3 | 90 psig: 15.9 | 100 psig: 17.4
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.52 | 5 psig (34.5 kPag): 1.21 | 10 psig (69.0 kPag): 1.68 | 15 psig (103.4 kPag): 2.10 | 20 psig (137.9 kPag): 2.49 | 25 psig (172.4 kPag): 2.86 | 30 psig (206.9 kPag): 3.21 | 40 psig (275.8 kPag): 3.93 | 50 psig (344.8 kPag): 4.64 | 60 psig (413.7 kPag): 5.34 | 70 psig (482.7 kPag): 6.05 | 80 psig (551.6 kPag): 6.77 | 90 psig (620.6 kPag): 7.49 | 100 psig (689.5 kPag): 8.21
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 2.26 | 20 In. Hg.: 2.26 | 30 In. Hg.: 2.26
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 1.07 | 20 In. Hg. (508 Mm. Hg.): 1.07 | 30 In. Hg. (762 Mm. Hg.): 1.07
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 1.64 | 10 In. Hg.: 2.06
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.773 | 10 In. Hg. (254 Mm. Hg.): 0.972
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0043 | 2 psig: 0.0061 | 3 psig: 0.0074 | 4 psig: 0.0086 | 5 psig: 0.0096 | 6 psig: 0.0105 | 7 psig: 0.0114 | 8 psig: 0.0122 | 9 psig: 0.0129 | 10 psig: 0.0136 | 15 psig: 0.0167 | 20 psig: 0.0192 | 30 psig: 0.0236 | 40 psig: 0.0272 | 50 psig: 0.0304 | 60 psig: 0.0333 | 70 psig: 0.0360 | 80 psig: 0.0385 | 90 psig: 0.0408 | 100 psig: 0.0430
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0163 | 2 psig (13.8 kPag): 0.0230 | 3 psig (20.7 kPag): 0.0282 | 4 psig (27.6 kPag): 0.0326 | 5 psig (34.5 kPag): 0.0364 | 6 psig (41.4 kPag): 0.0364 | 7 psig (48.3 kPag): 0.0431 | 8 psig (55.2 kPag): 0.0460 | 9 psig (62.1 kPag): 0.0488 | 10 psig (69 kPag): 0.0515 | 15 psig (103.4 kPag): 0.0630 | 20 psig (137.9 kPag): 0.0728 | 30 psig (206.9 kPag): 0.0892 | 40 psig (275.8 kPag): 0.1029 | 50 psig (344.8 kPag): 0.1151 | 60 psig (413.7 kPag): 0.1261 | 70 psig (482.7 kPag): 0.1362 | 80 psig (551.6 kPag): 0.1456 | 90 psig (620.6 kPag): 0.1544 | 100 psig (689.5 kPag): 0.1628
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
14
Specifications Screened
None
