Precision Threaded Orifice Inserts Set - Mixed Thread Sizes
Precision Threaded Orifice Inserts Set - Mixed Thread Sizes
SKU:PRE-3e393f
Control flow rates accurately with our Precision Threaded Orifice Inserts Set featuring multiple thread sizes. Made of durable brass for reliable performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Threaded Orifice Inserts Set - Mixed Thread Sizes
$49.99
Quantity: 1
Claim Your Seller Account
Precision Threaded Orifice Inserts Set - Mixed Thread Sizes
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

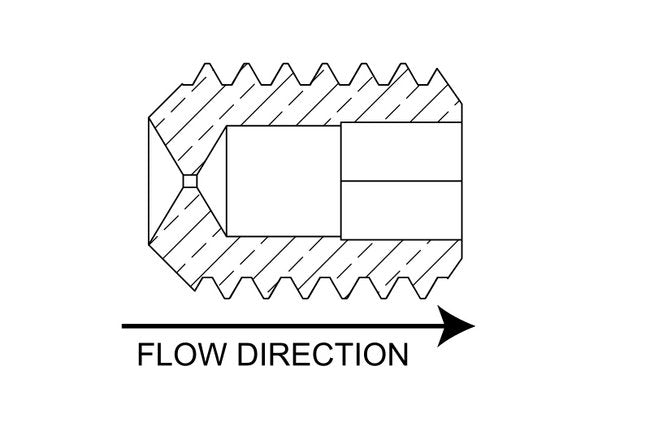

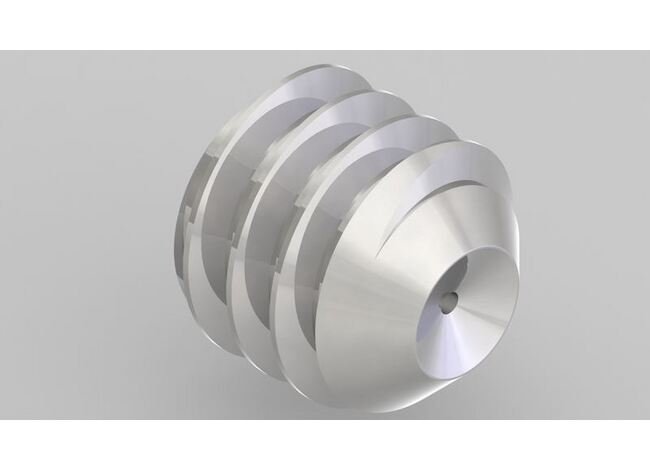

Enhance flow control and establish precise flow rates of liquids or gases with our set screw style threaded orifice inserts. This set includes a variety of thread sizes (6-32 UNC, 10-32 UNF, 1/4"-20 UNC, 5/16"-18 UNC, 3/8"-16 UNC) to suit different applications. Made of durable brass material, these inserts offer a nominal orifice size of 0.025 inches and provide accurate airflow data for informed decision-making. Ideal for fittings, manifolds, or custom parts, these inserts ensure efficient performance and reliability.

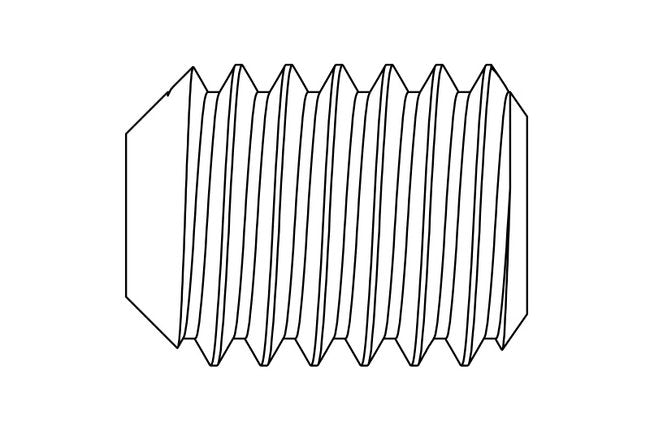

Product Specifications
Dimensions Orifice Diameter
0.025 in
Dimensions Thread Size
3/8-16
Dimensions Total Length
0.50 in
Dimensions Width Across Flats Hex
3/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 3.54 | 5 psig: 8.12 | 10 psig: 11.8 | 15 psig: 14.7 | 20 psig: 17.3 | 25 psig: 19.9 | 30 psig: 22.5 | 40 psig: 27.5 | 50 psig: 32.6 | 60 psig: 37.5 | 70 psig: 42.6 | 80 psig: 47.7 | 90 psig: 52.8 | 100 psig: 58.1
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.67 | 5 psig (34.5 kPag): 3.83 | 10 psig (69.0 kPag): 5.55 | 15 psig (103.4 kPag): 6.95 | 20 psig (137.9 kPag): 8.15 | 25 psig (172.4 kPag): 9.38 | 30 psig (206.9 kPag): 10.6 | 40 psig (275.8 kPag): 13.0 | 50 psig (344.8 kPag): 15.4 | 60 psig (413.7 kPag): 17.7 | 70 psig (482.7 kPag): 20.1 | 80 psig (551.6 kPag): 22.5 | 90 psig (620.6 kPag): 24.9 | 100 psig (689.5 kPag): 27.4
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 7.08 | 20 In. Hg.: 7.08 | 30 In. Hg.: 7.08
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.34 | 20 In. Hg. (508 Mm. Hg.): 3.34 | 30 In. Hg. (762 Mm. Hg.): 3.34
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 5.25 | 10 In. Hg.: 6.63
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.48 | 10 In. Hg. (254 Mm. Hg.): 3.13
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.014 | 2 psig: 0.020 | 3 psig: 0.024 | 4 psig: 0.028 | 5 psig: 0.031 | 6 psig: 0.034 | 7 psig: 0.037 | 8 psig: 0.040 | 9 psig: 0.042 | 10 psig: 0.044 | 15 psig: 0.054 | 20 psig: 0.063 | 30 psig: 0.077 | 40 psig: 0.089 | 50 psig: 0.099 | 60 psig: 0.108 | 70 psig: 0.117 | 80 psig: 0.125 | 90 psig: 0.133 | 100 psig: 0.140
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.053 | 2 psig (13.8 kPag): 0.075 | 3 psig (20.7 kPag): 0.092 | 4 psig (27.6 kPag): 0.106 | 5 psig (34.5 kPag): 0.119 | 6 psig (41.4 kPag): 0.119 | 7 psig (48.3 kPag): 0.140 | 8 psig (55.2 kPag): 0.150 | 9 psig (62.1 kPag): 0.159 | 10 psig (69 kPag): 0.168 | 15 psig (103.4 kPag): 0.205 | 20 psig (137.9 kPag): 0.237 | 30 psig (206.9 kPag): 0.290 | 40 psig (275.8 kPag): 0.335 | 50 psig (344.8 kPag): 0.375 | 60 psig (413.7 kPag): 0.411 | 70 psig (482.7 kPag): 0.443 | 80 psig (551.6 kPag): 0.474 | 90 psig (620.6 kPag): 0.503 | 100 psig (689.5 kPag): 0.530
Specifications Connection A
3/8"-16 UNC Threaded Insert
Specifications Material
Brass
Specifications Nominal Orifice Size
25
Specifications Screened
None
