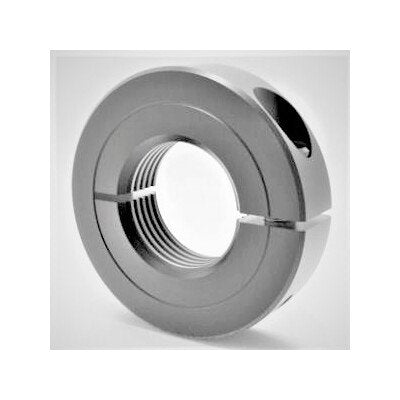

Precision Threaded Shaft Collar - UNF/UNC Split Clamp Type
Precision Threaded Shaft Collar - UNF/UNC Split Clamp Type
SKU:THR-76a3ab
Upgrade with our Precision Threaded Shaft Collar - UNF/UNC Split Clamp Type for standard shafts. High-strength Stainless Steel, superior holding power, and easy adjustment. RoHS2 and REACH compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Enhance your machinery with our Precision Threaded Shaft Collar designed for standard UNF/UNC threaded shafts. Crafted from high-strength Stainless Steel, these one-piece split clamp-type collars offer superior holding power and easy adjustment. Our collars feature precision machining, non-marring design, and a recessed screw for efficient operation. Stocked in Steel and Stainless Steel options, this collar is RoHS2 and REACH compliant, ensuring quality and performance.
Product Specifications
Dimensional Attributes Outside Diameter
0.813 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
4-40
Dimensional Attributes Threaded Bore Size
1/4-28
Dimensional Attributes Width
0.250 in
Specifications Alloy
303
Specifications Approximate Weight
0.03 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
3S004
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786011405
