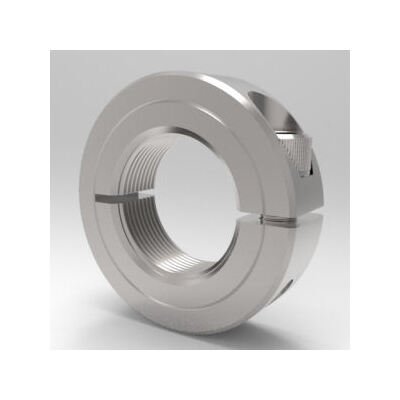

Precision Threaded Shaft Collars - UNF/UNC Split Clamp-Type
Precision Threaded Shaft Collars - UNF/UNC Split Clamp-Type
SKU:THR-837105
Precision Threaded Shaft Collars with UNF/UNC Threads for secure fastening on standard shafts. Durable and adjustable.
Regular price
$27.00
Regular price
Sale price
$27.00
Unit price
per
Initiate Order
Precision Threaded Shaft Collars - UNF/UNC Split Clamp-Type
$27.00
Quantity: 1
Claim Your Seller Account
Precision Threaded Shaft Collars - UNF/UNC Split Clamp-Type
$27.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Threaded Shaft Collars are engineered to fit standard UNF/UNC threaded shafts, offering superior holding power compared to set-screw collars. Available in High Strength and Low Profile styles, these 1-Piece Collars are precision machined from durable materials like Stainless Steel, ensuring non-marring, easy adjustment, and high clamping power. With a threaded bore size of 1-8, an outside diameter of 1.750 inches, and a width of 0.500 inches, these collars provide a secure fit for various applications. Meet your precision fastening needs with these quality collars, designed for reliability and longevity.
Product Specifications
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28
Dimensional Attributes Threaded Bore Size
1-8
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.22 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
27 USD
Specifications Material
Stainless Steel
Specifications Part Number
7S100C
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786012044
