Precision Trigon Negative Turning Blank with Hole and Counterbore, 0.129/0.135 in
Precision Trigon Negative Turning Blank with Hole and Counterbore, 0.129/0.135 in
SKU:TUR-b10d29
Premium Trigon Negative Turning Blank for precise machining, 0.129/0.135 in thickness. Customizable Grade Availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Trigon Negative Turning Blank with Hole and Counterbore, 0.129/0.135 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision Trigon Negative Turning Blank with Hole and Counterbore, 0.129/0.135 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Trigon Negative Turning Blank with Hole and Counterbore is a versatile and high-quality component designed for turning applications. With a precise thickness of 0.129/0.135 inches, an inscribed circle of 0.407/0.410 inches, and an 84-degree angle, this blank ensures accurate and efficient machining operations. The included hole of 0.147/0.151 inches and counterbore dimensions of 0.210/0.214 inches provide added functionality. Grade availability is customizable upon request, meeting the stringent requirements of various industries.
Ready to Grow Without Cash Flow Constraints?

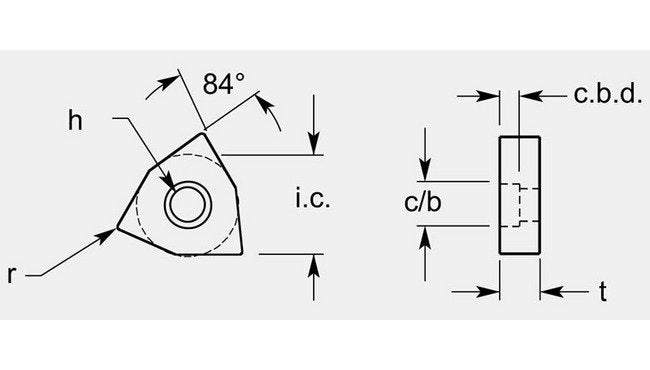

Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.210 / 0.214 in
Dimensional Specification Cbd
0.061 in
Dimensional Specification Hole
0.147 / 0.151 in
Dimensional Specification Inscribed Circle Ic
0.407/0.410 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.129 / 0.135 in
Grade Availability Grade Availability
Available on Request
