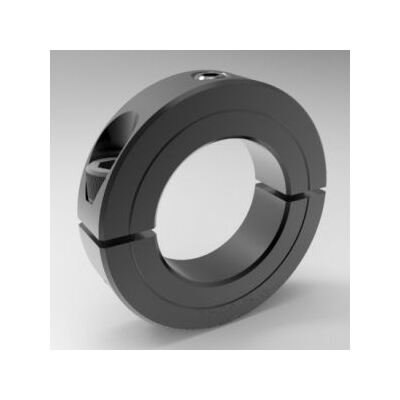

Precision Two-Piece Split Clamp Shaft Collars

Name: Precision Two-Piece Split Clamp Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: ROU-716b7d
Price: 110.1 USD
Availability: OutOfStock

SKU:ROU-716b7d

Precision Two-Piece Split Clamp Shaft Collars, high clamping power, Steel, low profile, USA-made, RoHS2 & REACH compliant

$110.10

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your shaft assembly with our Precision Two-Piece Split Clamp Shaft Collars. These collars feature a clamp style design with an additional set screw for secure positioning anywhere on a shaft. Precision machined from Steel, these Low Profile collars offer easy adjustment and high clamping power. With dimensions Bore Size: 4 in, Outside Diameter: 5.250 in, and Width: 0.875 in, these collars provide versatility for various applications. Available in Steel and Stainless Steel, with customization options for materials. Made in the USA, RoHS2 and REACH compliant.

Product Specifications

Dimensional Attributes Bore Size

4 in

Dimensional Attributes Outside Diameter

5.250 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

3/8-24 x 1

Dimensional Attributes Top Set Screw Size

1/2-13 x 5/8

Dimensional Attributes Width

0.875 in

Specifications Alloy

C1026

Specifications Approximate Weight

2.09 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications List Price

110.1 USD

Specifications Material

Steel

Specifications Part Number

8L400R

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786009006

Precision Two-Piece Split Clamp Shaft Collars
