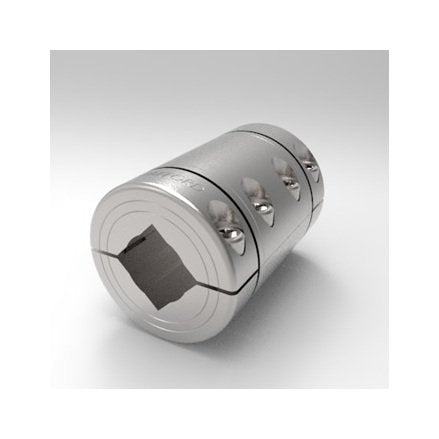

Precision Two-Piece Split Square Bore Couplings
Precision Two-Piece Split Square Bore Couplings
SKU:ROU-966117
Experience precise shaft alignment and high clamping power with our Precision Two-Piece Split Square Bore Couplings. Available in Steel, Stainless Steel, and Aluminum.
Regular price
$94.54
Regular price
Sale price
$94.54
Unit price
per
Initiate Order
Precision Two-Piece Split Square Bore Couplings
$94.54
Quantity: 1
Claim Your Seller Account
Precision Two-Piece Split Square Bore Couplings
$94.54
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Two-Piece Split Square Bore Couplings from the Signature series offer impeccable shaft alignment with axial runout less than .001" TIR. Designed with a solid center section for close tolerance fit on shafting, these couplings feature the exclusive Accu-Clamp™ design for self-centering clamping at both ends. This precision sleeve coupling allows for convenient assembly and adjustment, boasting precision machining, non-marring attributes, and high clamping power. Available in Steel, Stainless Steel, and Aluminum.
Product Specifications
Dimensional Attributes Bore Size A
3/8 in
Dimensional Attributes Bore Size B
3/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
10-32 x 1/2
Dimensional Attributes Total Length
2.250 in
Specifications Alloy
303
Specifications Approximate Weight
0.86 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
94.54 USD
Specifications Material
Stainless Steel
Specifications Part Number
15S006006PSC
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Precision Sleeve
Specifications Upc Code
662786040382
