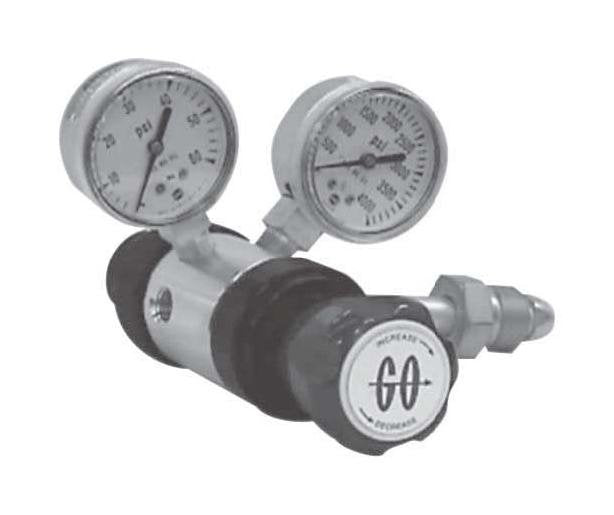

Precision Two-Stage Cylinder Regulator - CYL-2 Series

Precision Two-Stage Cylinder Regulator - CYL-2 Series

SKU:GOR-aa5d0f

Achieve precision pressure control with the CYL-2 Series Cylinder Regulator, ideal for instrumentation applications and more.

Regular price $229.99
Regular price Sale price $229.99
Sale

Initiate Order

Precision Two-Stage Cylinder Regulator - CYL-2 Series

Precision Two-Stage Cylinder Regulator - CYL-2 Series

$229.99

Quantity: 1

Claim Your Seller Account

Precision Two-Stage Cylinder Regulator - CYL-2 Series

Precision Two-Stage Cylinder Regulator - CYL-2 Series

$229.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Precision Two-Stage Cylinder Regulator from the CYL-2 Series is ideal for precision pressure control in instrumentation and other applications. Constructed with brass and featuring Teflon® lined stainless steel diaphragms, this regulator ensures stable pressure output. With integral filters, optional relief valves, and shut off valves, it offers maximum flexibility and precise pressure settings. Operating at a maximum inlet pressure of 3600 psig, with outlet pressure ranges from 0-50 psig, this regulator is designed for non-corrosive gases with a wide operating temperature range.

Product Specifications

Specifications Body Material
Brass
Specifications Cap Assembly 1st Stage
Tamper-proof
Specifications Cap Assembly 2nd Stage
Standard
Specifications Cga Fitting
CGA
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Cv
0.025
Specifications Gauges
Include gauges
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 175 ºF | -40 to 80 ºC
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
PEEK®
Specifications Series
CYL-2

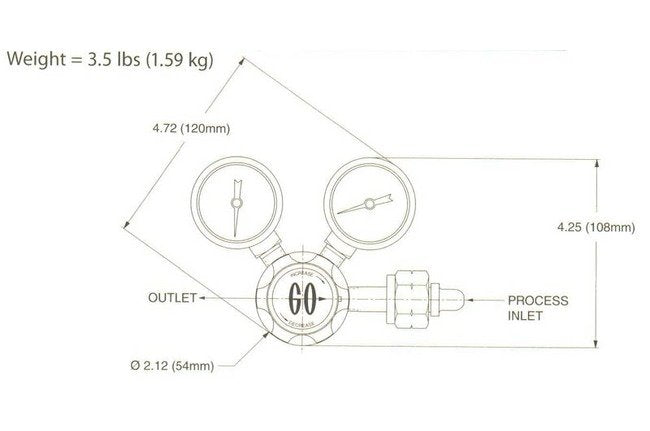

Specifications Weight
3.5 lbs
