Precision U-Notch Blanks, 0.197 / 0.203 in
Precision U-Notch Blanks, 0.197 / 0.203 in
SKU:GRO-972d71
Premium U-Notch Blanks for precise grooving. Thickness: 0.197 / 0.203in, Grade customizable. Ideal for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision U-Notch Blanks, 0.197 / 0.203 in
$29.99
Quantity: 1
Claim Your Seller Account
Precision U-Notch Blanks, 0.197 / 0.203 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision U-Notch Blanks in U-Notch Style offer exceptional quality and accuracy for your grooving needs. With a thickness of 0.197 / 0.203 inches, a precise radius of 1/64 inch, and an optimal angle of 55 degrees, these blanks ensure consistent performance. The width ranges from 0.389 to 0.395 inches, with a breaker size of 0.088 inches. Grade availability can be customized upon request, catering to specific requirements. Ideal for industrial and institutional applications, these blanks uphold stringent quality standards for reliable performance.

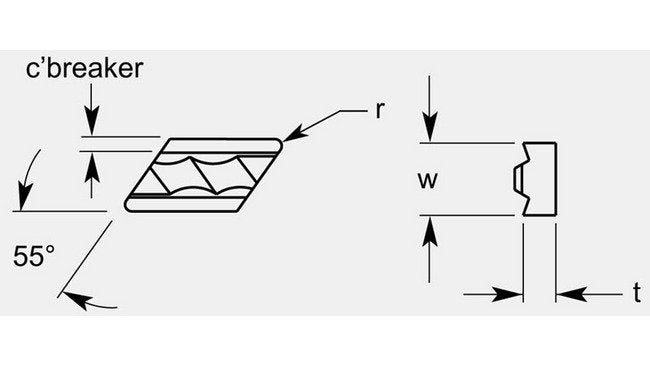

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Cbreaker
0.088 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.197 / 0.203 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
