Precision U-Notch Blanks, 0.197 / 0.203 in
Precision U-Notch Blanks, 0.197 / 0.203 in
SKU:GRO-5108ef
Premium U-Notch Blanks, 0.197/0.203 in, Grade options available. Superior accuracy and durability for industrial grooving.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Precision U-Notch Blanks, 0.197 / 0.203 in
$39.99
Quantity: 1
Claim Your Seller Account
Precision U-Notch Blanks, 0.197 / 0.203 in
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

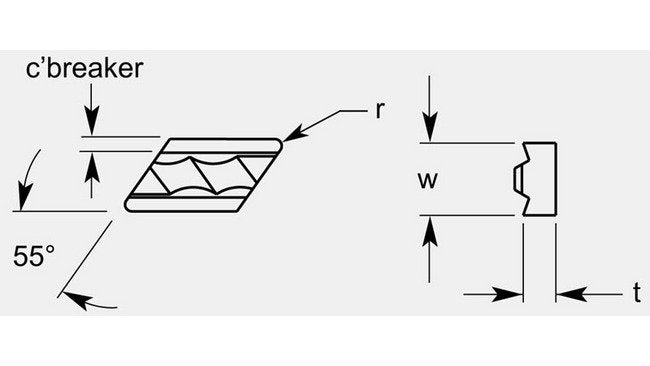

The Precision U-Notch Blanks in U-Notch Style offer a thickness range of 0.197 to 0.203 inches, with a precise radius of 1/64 inch and an angle of 55 degrees. These blanks are designed with a width ranging from 0.389 to 0.395 inches, featuring a c'breaker of 0.107 inches. Grade availability can be customized upon request, ensuring suitability for various applications. Manufactured to the highest quality standards, these blanks provide exceptional accuracy and durability for grooving tasks in demanding industrial settings.
Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Cbreaker
0.107 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.197 / 0.203 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
