Precision U-Notch Blanks, 0.200 / 0.206 in Thickness
Precision U-Notch Blanks, 0.200 / 0.206 in Thickness
SKU:GRO-ceb9d1
High-precision U-Notch Blanks for grooving applications, with 0.200 / 0.206 in thickness. Available in various grades.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision U-Notch Blanks, 0.200 / 0.206 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Precision U-Notch Blanks, 0.200 / 0.206 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

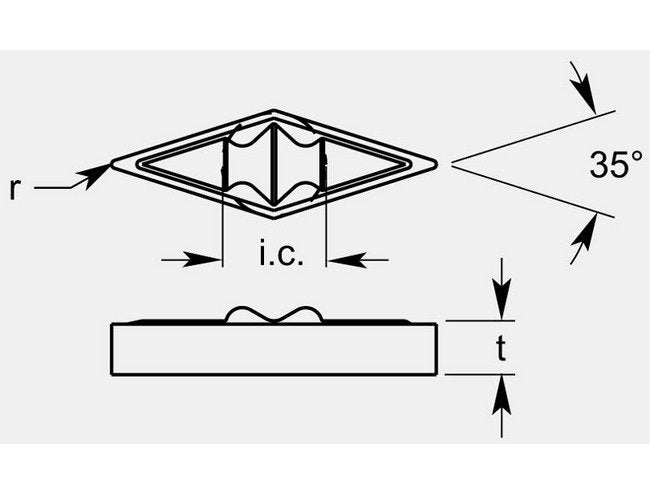

The Precision U-Notch Blanks feature a thickness of 0.200 / 0.206 inches, inscribed circle of 0.389/0.395 inches, radius of 1/64 inch, and 35° angle. Designed for grooving applications, these blanks offer exceptional precision and durability. Suitable for a wide range of projects, they are available upon request in various grades to meet specific requirements.
Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.200 / 0.206 in
Grade Availability Grade Availability
Available on Request
