Precision U-Notch Style Blade, 0.197 / 0.203 in Thickness
Precision U-Notch Style Blade, 0.197 / 0.203 in Thickness
SKU:GRO-12eb0f
High-precision U-Notch Blade, 0.197 / 0.203 in, ideal for accurate grooving tasks. Grade customization available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision U-Notch Style Blade, 0.197 / 0.203 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Precision U-Notch Style Blade, 0.197 / 0.203 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision U-Notch Style Blade is designed for precise grooving applications in various materials. With a thickness range of 0.197 to 0.203 inches, a sharp Radius of 1/64 inch, an optimal Angle of 55 degrees, and a Width between 0.389 to 0.395 inches, this blade ensures accuracy and efficiency in cutting tasks. Grade availability can be tailored to meet specific requirements upon request.

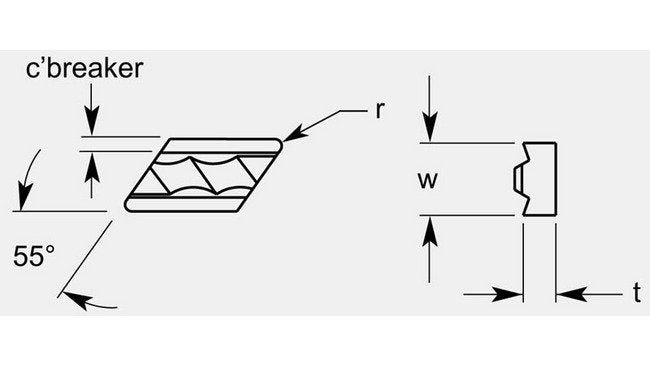

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Cbreaker
0.088 in
Dimensional Specification Radius R
1/64 in
Dimensional Specification Thickness T
0.197 / 0.203 in
Dimensional Specification Width W
0.389 / 0.395 in
Grade Availability Grade Availability
Available on Request
