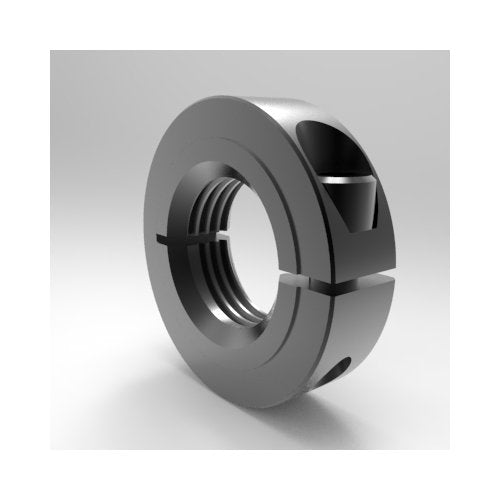

Precision UNF/UNC Threaded Hub Split Clamp Shaft Collar
Precision UNF/UNC Threaded Hub Split Clamp Shaft Collar
SKU:ROU-2e271f
Maximize shaft efficiency with our Precision Threaded Hub Shaft Collar. High clamping power, non-marring, and easy to adjust for standard UNF shafts.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Precision UNF/UNC Threaded Hub Split Clamp Shaft Collar
$14.99
Quantity: 1
Claim Your Seller Account
Precision UNF/UNC Threaded Hub Split Clamp Shaft Collar
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance shaft performance with our Precision UNF/UNC Threaded Hub Split Clamp Shaft Collar. Crafted from durable steel alloy, featuring a black oxide finish, and a low profile design. This collar ensures optimal clamping power for standard UNF shafts, minimizing friction and marring. Ideal for bearing inner-races with a superior holding power over set-screw collars.
Product Specifications
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Threaded Bore Size
1-14
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.22 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
HUB7L100F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786029998
