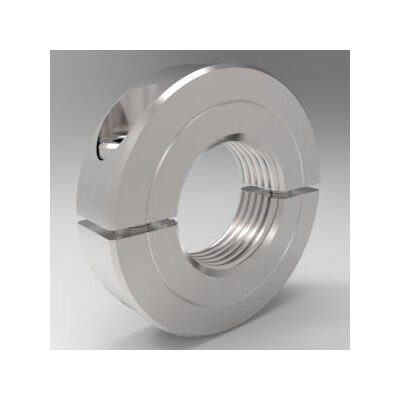

Precision UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type
Precision UNF/UNC Threaded Shaft Collars - Two-Piece Split Clamp-Type
SKU:THR-ba0a63
Precision-engineered UNF/UNC Threaded Shaft Collars for superior holding power and easy adjustability. High Strength & Low Profile options available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Upgrade your machinery with our precision-engineered UNF/UNC Threaded Shaft Collars. Designed for standard UNF (fine thread) or UNC (coarse thread) shafts, these 2-Piece Split Clamp-Type Collars offer superior holding power, easy adjustability, and non-marring features. Choose between High Strength or Low Profile styles to suit your application. Crafted from premium Stainless Steel, RoHS2 and REACH compliant. Made in the USA.
Product Specifications
Dimensional Attributes Outside Diameter
0.813 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
4-40 x 5/16
Dimensional Attributes Threaded Bore Size
5/16-24
Dimensional Attributes Width
0.250 in
Specifications Alloy
303
Specifications Approximate Weight
0.03 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
3S005F
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786012396
