Precision UNF/UNC Threaded Split Clamp Shaft Collars

Name: Precision UNF/UNC Threaded Split Clamp Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: THR-0b78fc
Price: 24.99 USD
Availability: OutOfStock

SKU:THR-0b78fc

Securely clamp UNF/UNC threaded shafts with precision and durability. Easy to adjust, high clamping force.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

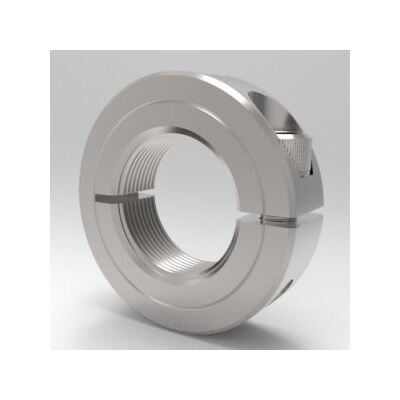

The Precision UNF/UNC Threaded Split Clamp Shaft Collars are designed to fit standard UNF (fine thread) or UNC (coarse thread) shafts with superior holding power. These one-piece collars, offered in High Strength and Low Profile styles, are precision machined from Stainless Steel for durability and non-marring properties. With easy adjustability and high clamping force, these collars provide a secure and reliable connection. Stocked in Steel and Stainless Steel variants.

Product Specifications

Dimensional Attributes Outside Diameter

1.625 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28

Dimensional Attributes Threaded Bore Size

7/8-9

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.2 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

7S014C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012020
