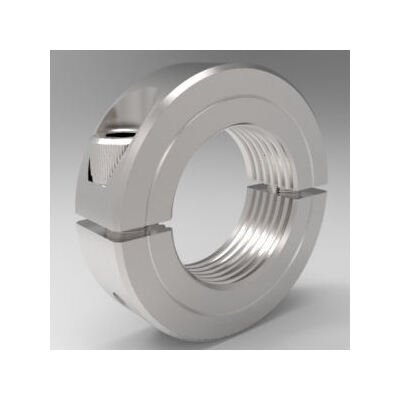

Precision UNF/UNC Threaded Two-Piece Split Clamp Shaft Collars

Name: Precision UNF/UNC Threaded Two-Piece Split Clamp Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: THR-4402c9
Price: 12.99 USD
Availability: OutOfStock

SKU:THR-4402c9

Adjustable, precision machined UNF/UNC threaded shaft collars for secure clamping on standard shafts.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision UNF/UNC Threaded Two-Piece Split Clamp Shaft Collars provide secure and adjustable clamping for standard UNF/UNC threaded shafts. Featuring precision machining in High Strength and Low Profile styles, these collars offer superior holding power compared to set-screw types. They are non-marring, easy to adjust, and can be positioned anywhere along the shaft. Stocked in Steel and Stainless Steel variants, these collars are ideal for applications requiring precision and durability.

Product Specifications

Dimensional Attributes Outside Diameter

0.688 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

4-40 x 5/16

Dimensional Attributes Threaded Bore Size

5/16-18

Dimensional Attributes Width

0.313 in

Specifications Alloy

303

Specifications Approximate Weight

0.02 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

8S005C

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786012907
