Precision Universal Load Cell Load Buttons
Precision Universal Load Cell Load Buttons
SKU:LOA-982a1d
Achieve precision in weight measurement with our Universal Load Cell Buttons. Compliant with industry standards for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Universal Load Cell Load Buttons
$29.99
Quantity: 1
Claim Your Seller Account
Precision Universal Load Cell Load Buttons
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Universal Load Cell Load Buttons are essential in ensuring accurate weight measurements for a wide range of applications. With a height range from 1-7/16 in to 1-7/8 in and precise radius measurements, these buttons guarantee consistent and reliable results. Designed to meet stringent industry standards, including Federal/DoD procurement requirements and FAR compliance factors, these load buttons are ideal for institutional and government procurement needs.
Product Specifications

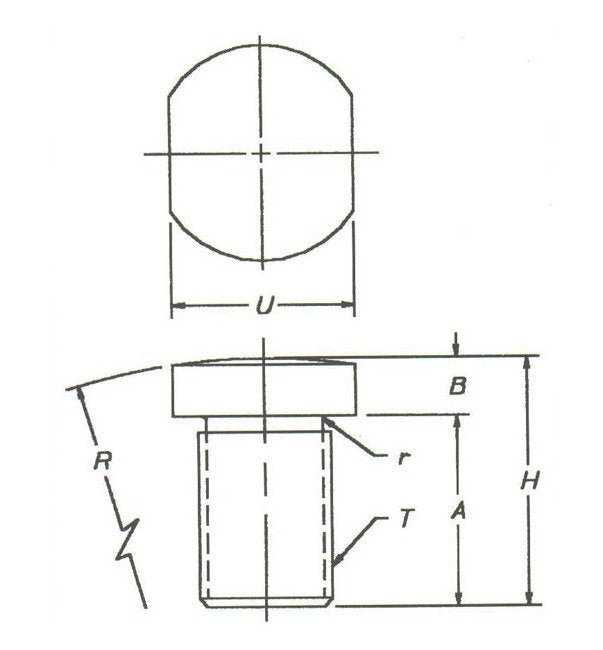

Dimensional Drawing Dimensional Drawing

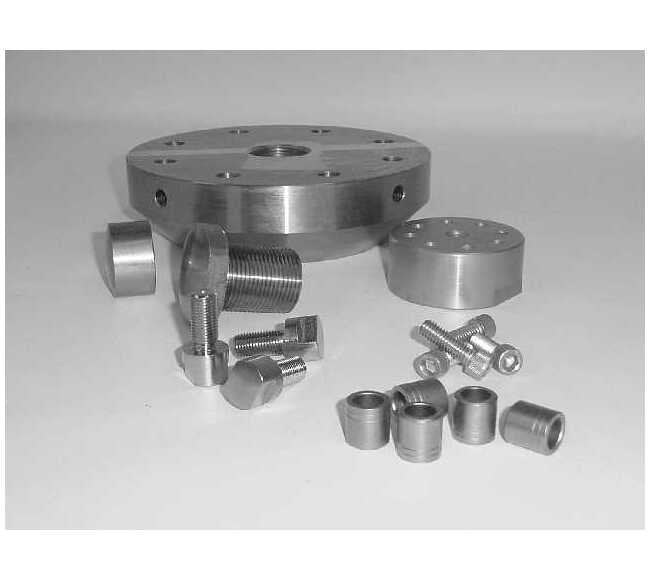

Universal Load Cell Accessories
Specifications A Height
1-7/16 in
Specifications B Height
7/16 in
Specifications H Height
1-7/8 in
Specifications R Radius
5.000 in
Specifications T Thread Size
1-14UNF-2A
Specifications U Width
1-3/8 in
