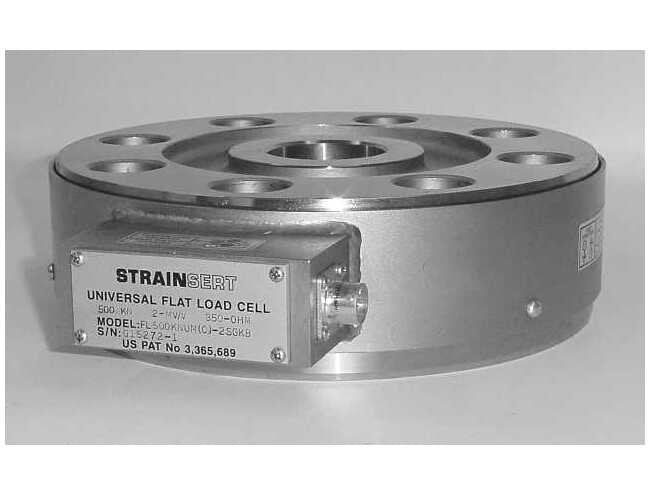

The Precision Universal Load Cells are versatile instruments designed to accurately measure forces in both tension and compression. With a robust construction, these load cells offer a low profile, ruggedness, compactness, and lightweight properties. Featuring pressure compensating sealed strain gages and counterbored mounting holes, these load cells exhibit low sensitivity to extraneous loads, ensuring high static overload capabilities. Ideal for high frequency dynamic load sensing applications, these load cells provide reliable performance across various industrial scenarios.
Product Specifications
Dimensional Drawing Dimensional Drawing
Metric Universal Load Cell
Electrical Specifications Cable
#20(26x34) AWG., rubber insulation, shielded, rubber jacket, 4-Conductor (Standard Cable)
Electrical Specifications Excitation
Red
Electrical Specifications Function
Wire Code
Electrical Specifications Mating Plug
PT06A-10-6S (SR)
Electrical Specifications Signal
Green
Features 0
Low Profile, Rugged, Compact & Lightweight Low Deflection High Frequency Dynamic Load Sensing Pressure Compensating Sealed Strain Gages Counterbored Mounting Holes Low Sensitivity to Extraneous Loads High Static Overload
General Information 0
Load Cells are strain gage transducers developed by Strainsert (U.S. Patent No. 3,695,096). They are manufacured utilizing the internal strain gage process perfected by Strainsert since 1960. The structure is simple and compact, consisting of an inner loading hub and an outer supporting flange bridged smoothly by a uniformly continuous solid shear web avoiding structural stress risers.Strain gages are installed and sealed inside small gage holes along the neutral axis of the web. Linearity and symmetry of output signal in tension and compression are obtained by equal straining of all shear gages in the bridge circuit.Low deflection and high natural frequency are obtained, along with high resistance to extraneous forces. Mechanical and dynamic properties are fully tabulated.
Performance Specs Bridge Resistance
350 Ohms (Nominal)
Performance Specs Compensated Range
60 to 150 ºF
Performance Specs Effect On Output
±0.0030% Load/°F (Nominal)
Performance Specs Effect On Zero
±0.0035% FS/°F
Performance Specs Excitation Voltage
15V AC or DC (Maximum)
Performance Specs Hysteresis
General Purpose ±0.15% FS | Precision ±0.10% FS
Performance Specs Insulation Resistance
10,000 Megaohms (Minimum)
Performance Specs Non Linearity
General Purpose ±0.25% FS | Precision ±0.10% FS
Performance Specs Non Repeatability
±0.05% FS
Performance Specs Safe Static Overload Without Output Shift
200%FS
Performance Specs Safe Static Overload Without Structural Failur
250%FS
Performance Specs Safe Static Overload Without Zero Shift
200%FS
Specifications A Diameter
27.0 mm
Specifications B Diameter
46.0 mm
Specifications C Diameter
81.0 mm
Specifications D Diameter
85.7 mm
Specifications F Height
23.8 mm
Specifications G Width
74.6 mm
Specifications H Height
25.4 mm
Specifications K Inside Diameter
7.14 mm
Specifications K Outside Diameter
10.32 mm
Specifications Lifting Holes Bc Diameter
NONE
Specifications Load Capacity
10,000 lb | 45 kN
Specifications L Diameter
61.9 mm
Specifications Material Of Construction
Alloy Steel
Specifications N Depth Of Hole
9.5 mm
