Precision Utility Diamond Negative Turning Blank with Hole, r 1/64 in

Name: Precision Utility Diamond Negative Turning Blank with Hole, r 1/64 in
Brand: Ultra-Met
SKU: TUR-303b69
Price: 39.99 USD
Availability: OutOfStock

SKU:TUR-303b69

Enhance turning precision with our Utility Diamond Negative Blank, Radius: 1/64 in, Grade options available.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Precision Utility Diamond Negative Turning Blank with Hole, featuring a precise Radius of 1/64 in, Thickness range of 0.198 - 0.206 in, and an Inscribed Circle diameter of 0.497 - 0.503 in, offers exceptional quality for turning applications. This versatile blank, with an Angle of 80 degrees and a hole diameter of 0.200 - 0.206 in, ensures accuracy and efficiency in machining processes. Grade availability is customizable, meeting diverse institutional requirements upon request.

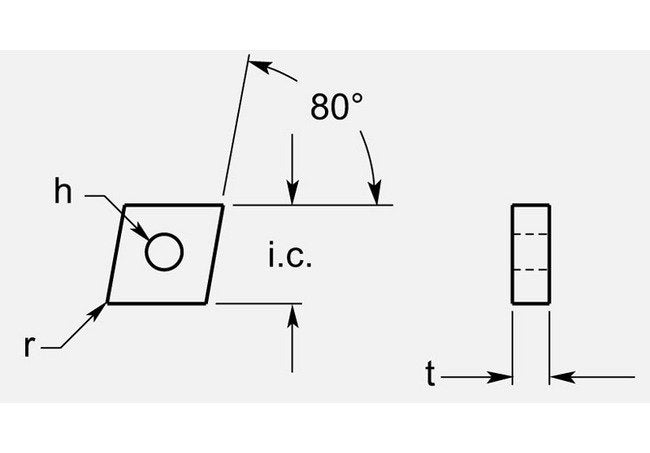

Product Specifications

Dimensional Specification Angle A

80 Âº

Dimensional Specification Hole

0.200 / 0.206 in

Dimensional Specification Inscribed Circle Ic

0.497/0.503 in

Dimensional Specification Radius R

1/64 in

Dimensional Specification Thickness T

0.198 / 0.206 in

Grade Availability Grade Availability

Available on Request

Precision Utility Diamond Negative Turning Blank with Hole, r 1/64 in
