Precision Vee Bottom Grooving Tool
Precision Vee Bottom Grooving Tool
SKU:GRO-72134e
Achieve precise grooving with the Vee Bottom Tool - 0.247 / 0.253 in thickness, 90° angle, 0.262 / 0.268 in width. Custom grades available.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Precision Vee Bottom Grooving Tool
$69.99
Quantity: 1
Claim Your Seller Account
Precision Vee Bottom Grooving Tool
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Vee Bottom Grooving Tool is a top-tier solution designed for professional grooving applications. With a precise dimensional specification of 0.247 / 0.253 in thickness, 90° angle, and 0.262 / 0.268 in width, this tool ensures accuracy and efficiency in groove cutting tasks. The Vee Bottom design with a flat of 0.031 / 0.041 in provides stability and consistency. Grade availability can be customized based on specific requirements, making this tool adaptable for various industrial needs.
Ready to Grow Without Cash Flow Constraints?

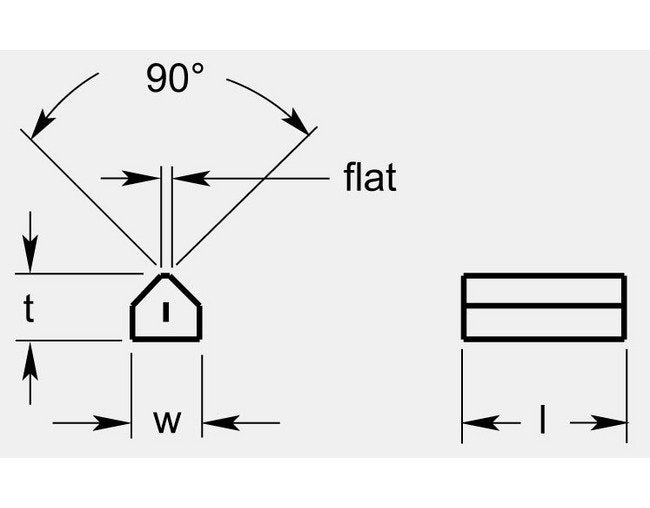

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Flat
0.031 / 0.041 in
Dimensional Specification L
0.640 / 0.650 in
Dimensional Specification Thickness T
0.247 / 0.253 in
Dimensional Specification Width W
0.262 / 0.268 in
Grade Availability Grade Availability
Available on Request
