Precision Vee Bottom Grooving Tool, 0.201 / 0.207 in

Name: Precision Vee Bottom Grooving Tool, 0.201 / 0.207 in
Brand: Ultra-Met
SKU: GRO-a99722
Price: 39.99 USD
Availability: OutOfStock

SKU:GRO-a99722

Achieve precision grooving with our Vee Bottom tool, 0.201 / 0.207 in thickness. Custom grade options available.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

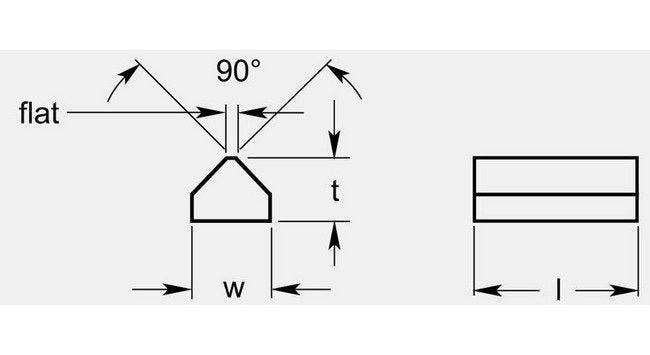

The Precision Vee Bottom grooving tool is designed to deliver exceptional results with a thickness ranging from 0.201 to 0.207 inches. With a precise 90-degree angle, widths between 0.263 to 0.271 inches, and lengths from 1.015 to 1.035 inches, this tool ensures accuracy and efficiency in grooving operations. The flat feature of 0.040 inches enhances stability and control. Grade availability can be customized based on specific requirements, ensuring optimal performance in various applications.

Product Specifications

Dimensional Specification Angle A

90 Âº

Dimensional Specification Flat

0.040 in

Dimensional Specification L

1.015 / 1.035 in

Dimensional Specification Thickness T

0.201 / 0.207 in

Dimensional Specification Width W

0.263 / 0.271 in

Grade Availability Grade Availability

Available on Request

Precision Vee Bottom Grooving Tool, 0.201 / 0.207 in
