Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
SKU:GRO-d3b675
High-performance Vee Bottom grooving tool, 0.244 / 0.256 in thickness, ideal for precision tasks.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
$49.99
Quantity: 1
Claim Your Seller Account
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Vee Bottom Grooving Tool is a high-quality solution designed for precise grooving tasks. With a thickness of 0.244 / 0.256 inches, a radius of 1/4 inch, and a width ranging from 0.417 to 0.423 inches, this tool offers exceptional accuracy and durability. The 90-degree angle and flatness of 0.060 / 0.070 inches ensure consistent performance. Grade availability can be customized to meet specific requirements upon request, making it an ideal choice for institutional and government applications.
Ready to Grow Without Cash Flow Constraints?

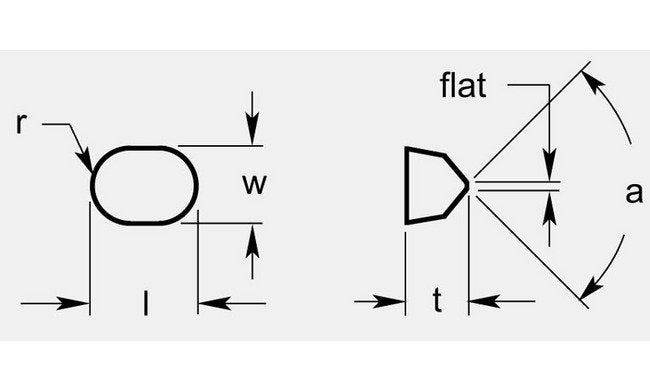

Product Specifications
Dimensional Specification A
90 º
Dimensional Specification Angle A
90 º
Dimensional Specification Flat
0.060 / 0.070 in
Dimensional Specification L
0.494 / 0.506 in
Dimensional Specification Radius R
1/4 in
Dimensional Specification Thickness T
0.244 / 0.256 in
Dimensional Specification Width W
0.417 / 0.423 in
Grade Availability Grade Availability
Available on Request
