Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
SKU:GRO-b4ce2a
Versatile Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in - Ideal for precise grooving tasks.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
$49.99
Quantity: 1
Claim Your Seller Account
Precision Vee Bottom Grooving Tool, 0.244 / 0.256 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Vee Bottom Grooving Tool is a versatile solution designed with a thickness of 0.244 / 0.256 inches, suitable for various grooving applications. Featuring a precise radius of 3/16 inches, an angle of 90 degrees, and a width of 0.362 / 0.368 inches, this tool ensures consistent and accurate grooving results. With additional specifications including 'l' measurements of 0.494 / 0.506 inches and a flat surface of 0.060 / 0.070 inches, this tool offers exceptional performance and durability. Grade availability can be tailored to specific requirements.
Ready to Grow Without Cash Flow Constraints?

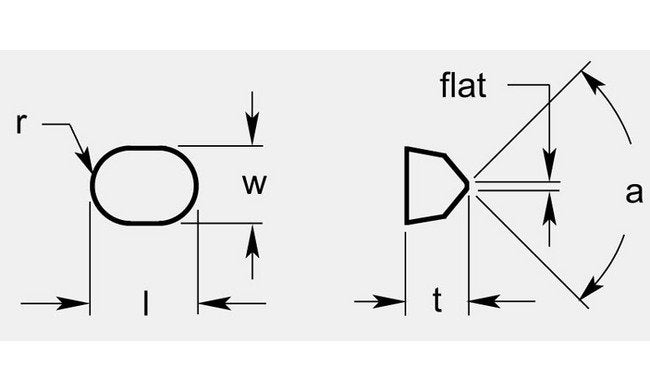

Product Specifications
Dimensional Specification A
90 º
Dimensional Specification Angle A
90 º
Dimensional Specification Flat
0.060 / 0.070 in
Dimensional Specification L
0.494 / 0.506 in
Dimensional Specification Radius R
3/16 in
Dimensional Specification Thickness T
0.244 / 0.256 in
Dimensional Specification Width W
0.362 / 0.368 in
Grade Availability Grade Availability
Available on Request
