Precision Vee Bottom Grooving Tool, 0.256 / 0.262 in
Precision Vee Bottom Grooving Tool, 0.256 / 0.262 in
SKU:GRO-864480
Achieve precision grooving with our Vee Bottom tool, 0.256 - 0.262 in thickness.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Vee Bottom Grooving Tool, 0.256 / 0.262 in
$49.99
Quantity: 1
Claim Your Seller Account
Precision Vee Bottom Grooving Tool, 0.256 / 0.262 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Vee Bottom is a cutting-edge grooving tool designed for precise and efficient performance. With a thickness range of 0.256 to 0.262 inches, it offers exceptional accuracy and consistency in grooving tasks. The tool features a radius of 3/16 inch, an angle of 100 degrees, and a width range of 0.372 to 0.378 inches. Its flat part measures between 0.060 to 0.070 inches, ensuring a smooth finish. This tool is Grade-A quality, meeting the highest industry standards for durability and reliability.

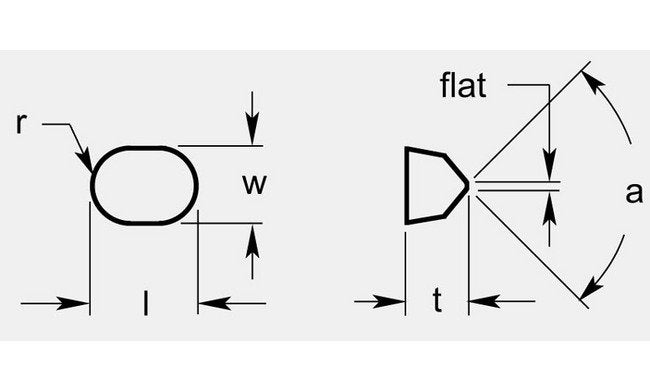

Product Specifications
Dimensional Specification A
100 º
Dimensional Specification Angle A
100 º
Dimensional Specification Flat
0.060 / 0.070 in
Dimensional Specification L
0.494 / 0.506 in
Dimensional Specification Radius R
3/16 in
Dimensional Specification Thickness T
0.256 / 0.262 in
Dimensional Specification Width W
0.372 / 0.378 in
Grade Availability Grade Availability
Available on Request
