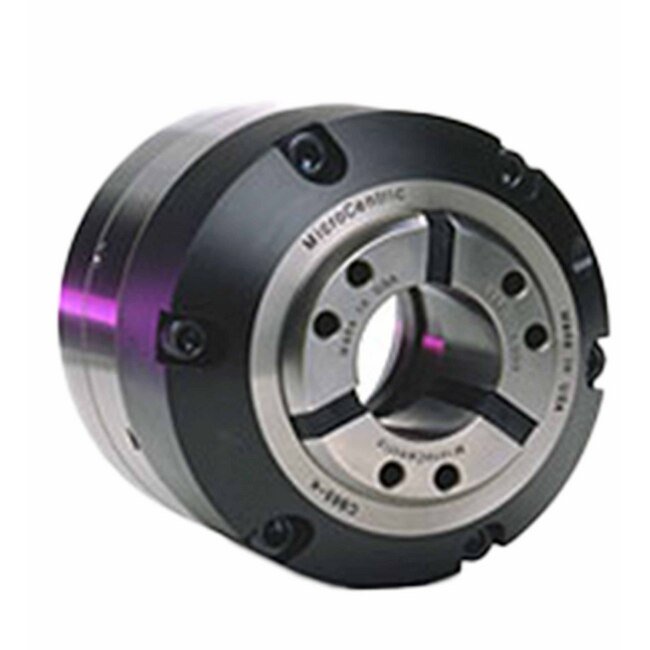

PrecisionCB-NK Collet Chucks
PrecisionCB-NK Collet Chucks
SKU:QUI-4fefa2
Enhance machining precision with our CB-NK Collet Chucks - Combination Design. Maximum efficiency, durability, and accuracy for all your chucking needs.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
PrecisionCB-NK Collet Chucks
$3,999.99
Quantity: 1
Claim Your Seller Account
PrecisionCB-NK Collet Chucks
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining operations with our Precision CB-NK Collet Chucks - Combination Design. The pull back design concentrates forces for optimal clamping efficiency. Features radial adjusting screws, lubricated-for-life design, and hardened precision components for durable performance. With a low profile and short length, it offers increased tool clearance and maximum Z-axis utilization, ensuring accuracy and rigidity. Ideal for bar to chucking applications, it features a removable stop plate and housing for end stops or part ejectors.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm
Specifications A Dimension
6.2 in | 157.48 mm
Specifications B Dimension
1.625 in | 41.28 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 065 162
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
2.245 in | 57 mm
Specifications Weight
46.5 lb | 21.1 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
