PrecisionFlow Ball Type NPT Nipple Control Valve
PrecisionFlow Ball Type NPT Nipple Control Valve
SKU:FLO-83c72f
Enhance fluid and gas control with our PrecisionFlow Ball Type Valve. Reliable, tamperproof, high-pressure capacity. Optimal for industrial applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
PrecisionFlow Ball Type NPT Nipple Control Valve
$59.99
Quantity: 1
Claim Your Seller Account
PrecisionFlow Ball Type NPT Nipple Control Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

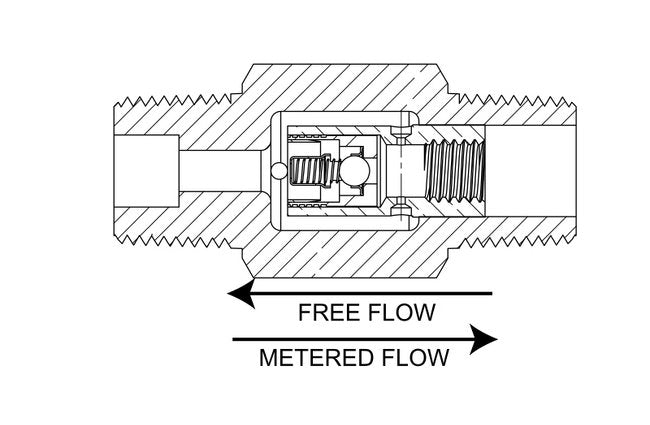

Enhance your fluid and gas control systems with our PrecisionFlow Ball Type NPT Nipple Control Valve. This fixed flow control features a precision orifice paired with a ball check valve to ensure free flow in one direction and metered flow in the other. Built with all-metal construction using high-quality 303 SS and 304 SS materials, this valve offers reliable operation, tamperproof orifice design, and high-pressure capacity. With a cracking pressure of 0 psig and a maximum operating pressure gauge of 200 psig, it meets the stringent requirements of industrial applications. Enjoy versatile performance with air flow ranging from 346 to 662 ft³/h at 100 psig and water flow from 0.8 to 1.6 gpm. Choose precision and durability with our PrecisionFlow Ball Type NPT Nipple Control Valve.
Product Specifications
Dimensions Orifice Diameter
0.043 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.122
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
0 psig
Specifications Cv Ratio Forward Cv Return Cv
2.98
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
43
Specifications Orifice Cv Return
0.041
Specifications Screened
None
