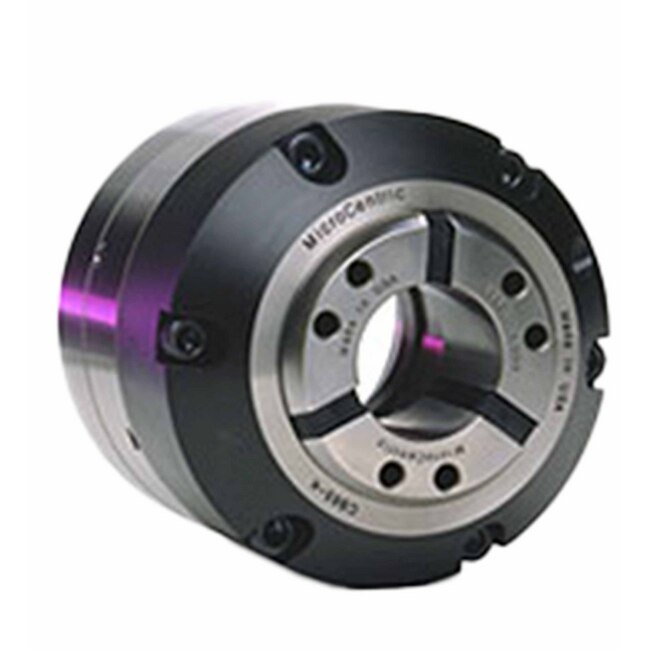

The PrecisionPro CB-NK Collet Chucks feature a pull-back design for enhanced clamping efficiency, with the ability to mount end stops inside the chuck body for seamless conversion between bar and chucking applications. This innovative collet chuck ensures maximum clamping force with radial adjusting screws for precise alignment within .0002 inches. Built with hardened and precision-ground components, this chuck offers exceptional accuracy and durability, making it ideal for high-demand machining operations.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

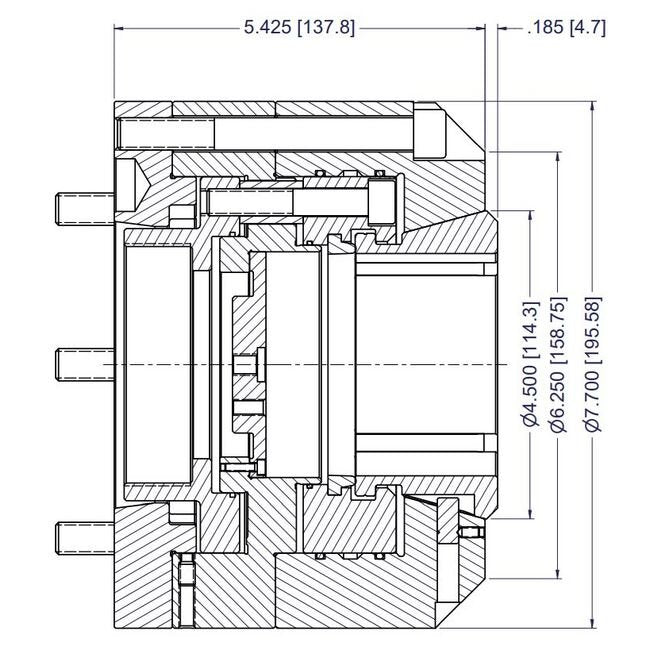

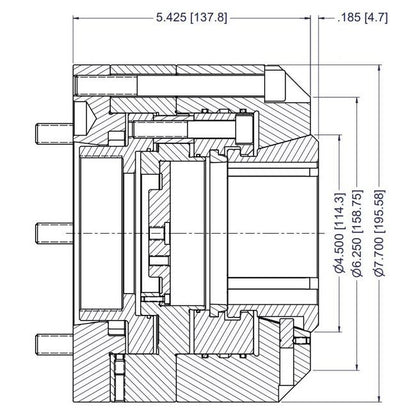

Specifications A Dimension
5.425 in | 137.8 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications Item No
15 080 351
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
2.700 in | 68 mm
Specifications Weight
53.49 lb | 24.26 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
