PrecisionSheave Load Pin
PrecisionSheave Load Pin
SKU:LOA-26637a
Get precise line tension measurement with our PrecisionSheave Load Pin. Designed for sheave applications, it offers unmatched accuracy and durability.
Regular price
$119.99
Regular price
Sale price
$119.99
Unit price
per
Initiate Order
PrecisionSheave Load Pin
$119.99
Quantity: 1
Claim Your Seller Account
PrecisionSheave Load Pin
$119.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

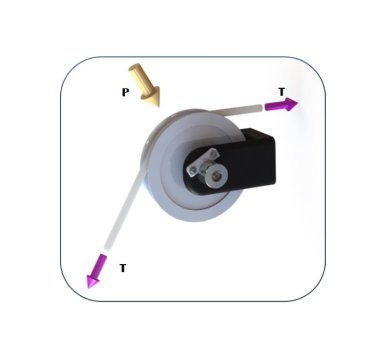

The PrecisionSheave Load Pin is specifically engineered for sheave applications, ensuring accurate measurement of line tension. Designed with a constant wrap angle feature, this load pin offers superior performance with a full bridge composition, 17-4 stainless steel material, and a range of precise specifications including excellent temperature resistance and high ultimate strength. Ideal for crane, hoist, and towing line tensioning applications, the PrecisionSheave Load Pin excels in providing reliable data in demanding scenarios.
Product Specifications
Applications Applications
Crane/Hoist Line Towing Line Tensioning
Specifications Bridge Composition
Full
Specifications Bridge Excitation
10 (typical), 12 maximum Vdc
Specifications Bridge Resistance
350 (nominal) Ohm
Specifications Bridge Sensitivity
0.5 and higher mV/V
Specifications Constant Wrap Angle
Constant Wrap Angle
Specifications Hysteresis
±1 % (nominal) F.S.
Specifications Material
17-4 Stainless Steel (typical)
Specifications Minimum Pin Diameter
1 (standard), 0.5 (with limitations) inch
Specifications Non Linearity
±1 % (nominal) F.S.
Specifications Non Repeatability
±0.25% (nominal) F.S.
Specifications Safe Overload
150% (typical) F.S.
Specifications Temperature Fs
±0.01% (nominal) load/°F
Specifications Temperature Zero
±0.01% (nominal) F.S./°F
Specifications Ultimate Strength
300% (typical) F.S.
Specifications Zero Balance
±3.0% (nominal) F.S.
