Preliminary NuPower™ C10Q02 Power Amplifier*
Preliminary NuPower™ C10Q02 Power Amplifier*
SKU:NUP-c2db25
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Preliminary NuPower™ C10Q02 Power Amplifier*
$49.99
Quantity: 1
Claim Your Seller Account
Preliminary NuPower™ C10Q02 Power Amplifier*
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

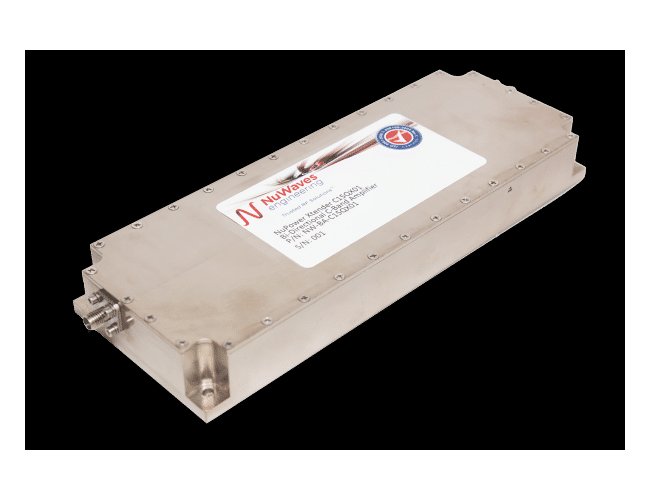

The NuPower™ C10Q02 is an efficient, miniature solid state power amplifier that delivers over 10 watts of RF power across the frequency range of 5250 to 5850 MHz. Based on the latest gallium nitride (GaN) technology, the NuPower™ C10Q02’s 10 – 30% power efficiency and compact 24 in³ form factor make it ideal for size, weight, and power-constrained RF telemetry and tactical communication systems. The NuPower™ C10Q02’s rugged chassis allows the system integrator to easily incorporate the unit into a platform operating in harsh environments with limited space. MIL-STD-810F Compliant. Extend your operational communication range with NuPower amplifiers from NuWaves Engineering.
Product Specifications
Specifications Export Classification
EAR99
Specifications Gain Typ
30 dB
Specifications Input Drive
10 dBM
Specifications Input Supply
22 - 32
Specifications Maximum Frequency
5850 MHz
Specifications Minimum Frequency
5250 MHz
Specifications Output Power Typ
10 W
Specifications Rf Connector Options
SMA
Specifications Size Lx W X H
2.96 x 8.09 x 1.00 Inch
Specifications Weight
32 oz
